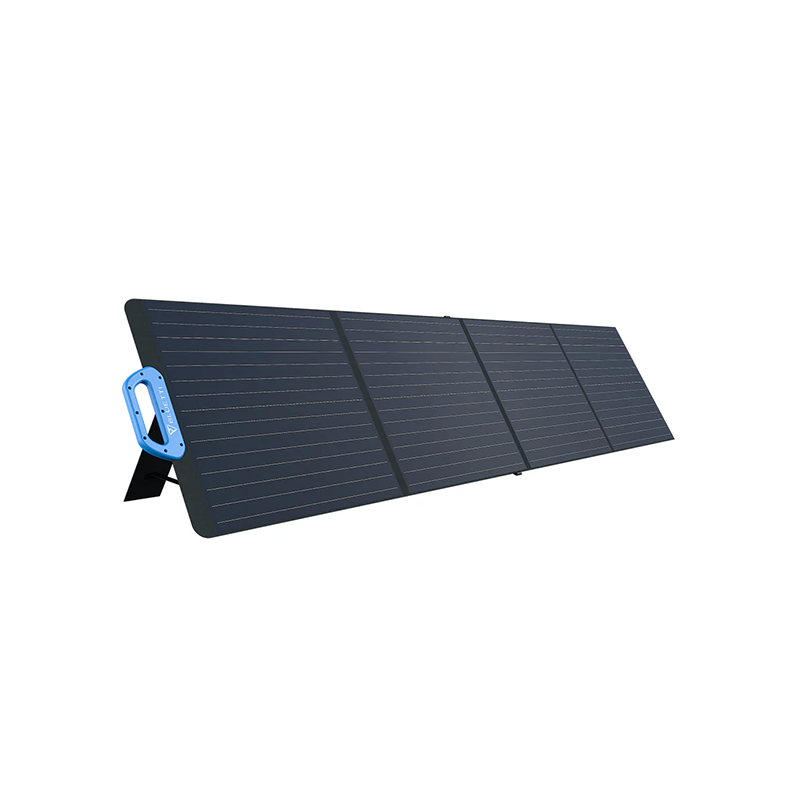

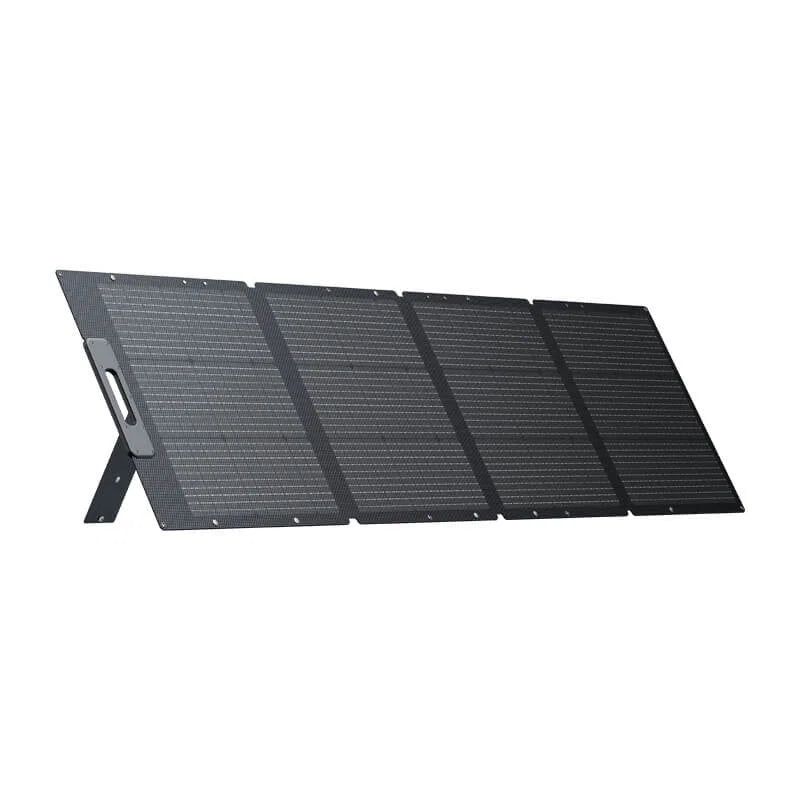

BLUETTI PV200D – 200W Foldable Solar Panel

The BLUETTI PV200D 200W Foldable Solar Panel is a portable solar charging solution designed for outdoor power, off-grid charging, camping, caravanning, RV travel, emergency preparedness, and portable power station charging. Built with high-efficiency monocrystalline solar cells, durable ETFE lamination, IP67 water resistance, standard MC4 connectivity, and a compact foldable design, it provides reliable renewable energy for compatible BLUETTI power stations and supported third-party solar generators.

Product Information

• Brand: BLUETTI

• Product Type: Portable Foldable Solar Panel

• Model: PV200D / BLUETTI 200W Solar Panel

• Rated Power: 200W

• Solar Cell Type: Monocrystalline Silicon

• Energy Conversion Efficiency: Up to 23.4%

• Surface Lamination: ETFE / Ethylene Tetrafluoroethylene

• Water Resistance Rating: IP67

• Connector Type: Standard MC4 Connector

• Warranty: 12 Months

• Compatibility Note: The connected power station must support the panel’s voltage, current, wattage, and MC4 connection specifications.

Key Features & Benefits

• 200W Solar Input Power: Generates up to 200W of renewable solar power for charging compatible BLUETTI portable power stations, solar generators, and supported off-grid energy systems.


• Up to 23.4% Energy Conversion Efficiency: High-efficiency monocrystalline silicon solar cells convert available sunlight into usable electricity for dependable portable charging.


• Durable ETFE Construction: Features a long-lasting ETFE laminated surface designed to improve light transmission, resist scratches, and support reliable performance in outdoor environments.


• IP67 Water Resistance: Provides protection against dust, splashes, and temporary water exposure during outdoor use. The panel should not be submerged or left exposed to prolonged heavy rain.


• Foldable and Portable Design: Folds into a compact storage form for easier transportation, setup, and storage during camping, caravanning, road trips, and outdoor adventures.


• Universal MC4 Connectivity: Uses standard MC4 connectors for compatibility with supported BLUETTI power stations and third-party solar generators with suitable input specifications.


• Reliable Off-Grid Charging: Provides renewable charging when conventional grid electricity is unavailable, helping maintain portable power during travel, emergencies, and remote activities.


• Silent and Fuel-Free Operation: Generates electricity directly from sunlight without fuel, fumes, engine noise, or ongoing generator operating costs.

• Easy Outdoor Setup: The foldable structure can be quickly opened and positioned toward direct sunlight for convenient portable solar charging.

Mechanical Specifications

• Product Type: Portable Foldable Solar Panel

• Dimensions When Folded: 23 × 23.9 × 1.7 in / 585 × 608 × 45 mm

• Dimensions When Unfolded: 23.9 × 82.8 in / 608 × 2,105 mm

• Net Weight: 17.15 lb / 8.14 kg

• Surface Material: ETFE laminated coating

• Installation Type: Portable foldable outdoor setup

• Portability: Compact folding design for transportation and storage

• Water Resistance Rating: IP67

• Operating Temperature: 14°F to 149°F / -10°C to 65°C

• Best Working Temperature: 77°F / 25°C

Electrical Performance

Solar Panel Specifications

• Maximum Output: 200W

• Voltage at Maximum Power – Vmp: 20.4V

• Current at Maximum Power – Imp: 9.7A

• Open-Circuit Voltage – Voc: 24.6V

• Short-Circuit Current – Isc: 10.8A

• Energy Conversion Efficiency: Up to 23.4%

• Solar Cell Type: Monocrystalline Silicon

• Surface Lamination: ETFE / Ethylene Tetrafluoroethylene

• Water Resistance Rating: IP67

• Output Connector: Standard MC4 Connector

Warranty Information

• Warranty: 12 Months

• Customer Support: Lifetime Customer Support

• Certifications: FCC, CE, and RoHS

• Water Exposure Notice: Water-resistant for outdoor use but not designed for prolonged exposure to heavy rain or complete submersion.

• Solar Panel Combination Notice: For improved performance and electrical safety, use solar panels with matching models and electrical specifications. Mixing panels with different voltage or current ratings is not recommended.

Compatibility

• Compatible Product Type: Portable power stations and solar generators with supported solar input specifications

• Connector Type: Standard MC4 Connector

• Third-Party Compatibility: Supported power stations with MC4 connectivity and a compatible solar input voltage and current range

• Designed For: Off-grid charging, portable power stations, camping power systems, caravanning, RV power systems, emergency backup, and outdoor energy setups

• Installation Limitation: Designed as a portable solar panel and not intended for permanent installation directly onto a residential roof

• Panel Combination Requirement: Connected panels should have matching electrical ratings and preferably be the same model and brand.

Smart Energy Features

• Supports portable solar charging
• Supports off-grid renewable power generation
• Provides up to 200W of rated solar input
• Uses high-efficiency monocrystalline solar cells
• Provides up to 23.4% solar conversion efficiency
• Features durable ETFE surface lamination
• Supports standard MC4 solar connectivity
• Features IP67 water-resistant outdoor protection
• Folds into a compact form for transportation and storage
• Generates electricity without fuel, fumes, or operating noise
• Supports compatible BLUETTI portable power stations
• Supports compatible third-party solar generators
• Designed for outdoor travel, emergencies, and remote energy applications

Applications

• Camping and outdoor adventures
• Caravanning and RV travel
• Road trips
• Off-grid charging
• Portable power station charging
• Emergency preparedness
• Solar generator setups
• Outdoor appliance power support
• Remote work power systems
• Fishing and recreational activities
• Outdoor events
• Home backup power preparation
• Renewable energy generation

Included Accessories

• BLUETTI 200W Foldable Solar Panel
• Standard MC4 solar connection
• User Manual

System Benefits When Paired with Compatible BLUETTI Portable Power Stations

• Provides up to 200W of renewable solar charging power
• Supports off-grid charging for essential devices and appliances
• Helps extend portable power station runtime during camping and outdoor use
• Reduces reliance on wall outlets and car charging when sunlight is available
• Improves backup power flexibility during emergencies and power outages
• Supports portable solar generator configurations
• Provides silent and emission-free energy generation
• Uses standard MC4 connectivity for convenient system integration
• Folds into a compact form for easier transportation and storage
• Supports longer trips where grid electricity is unavailable
• Helps maintain portable energy for caravanning, RV travel, and remote activities
• Supports longer off-grid power use when positioned in strong, direct sunlight and paired with a compatible portable power station.

*Contact PVtoEV for compatibility guidance and complete BLUETTI portable power station and solar panel recommendations.
