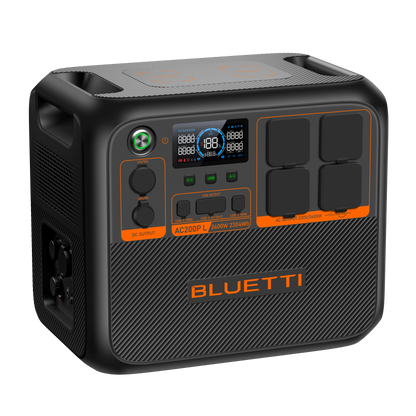

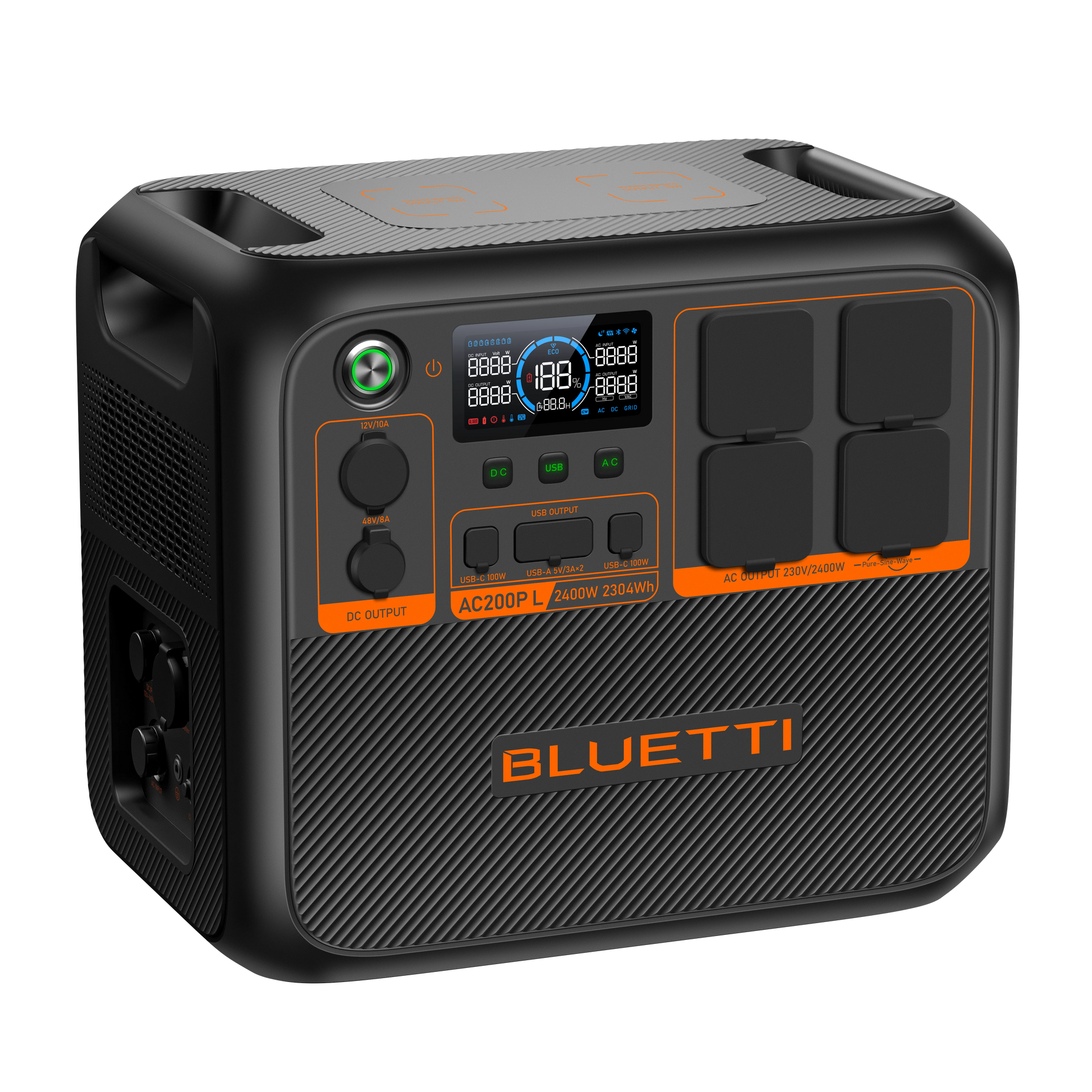

BLUETTI AC200PL Portable Power Station - 2,304Wh | 2,400W

The BLUETTI AC200PL Portable Power Station is a high-capacity 2,304Wh LiFePO₄ energy solution designed for home backup, caravanning, RV travel, camping, off-grid living, outdoor work and emergency preparedness. Delivering 2,400W of continuous pure sine wave AC output and up to 3,600W through Power Lifting Mode, it can operate refrigerators, kitchen appliances, power tools, heating equipment, communication systems and other compatible devices. With 2,400W Turbo AC charging, up to 1,200W solar input, 12 versatile output ports, expandable battery capacity, Wi-Fi and Bluetooth app control and approximately 20ms UPS switching, the AC200PL provides dependable power for demanding mobile and backup applications.

Product Information

• Brand: BLUETTI
• Model: AC200PL / AC200P L
• Product Type: Expandable Portable Power Station
• Battery Capacity: 2,304Wh
• Battery Chemistry: LiFePO₄ / Lithium Iron Phosphate
• Battery Cycle Life: 3,500+ cycles to 80% original capacity
• Rated AC Output: 2,400W
• Power Lifting Output: Up to 3,600W
• Surge Output: Up to 3,600W
• AC Output Voltage: 230V
• AC Output Frequency: 50Hz
• Inverter Type: Pure Sine Wave
• Maximum AC Charging Input: 2,400W
• Maximum Solar Input: 1,200W
• Solar Input Range: 12V–145V DC, 15A Maximum
• Maximum Combined Input: 2,400W
• Total Output Ports: 12
• UPS Switching Time: Approximately 20ms
• Wireless Connectivity: Wi-Fi and Bluetooth
• App Support: BLUETTI App
• Pass-Through Charging: Supported
• Expansion Battery Support: B210P, B230 and B300
• Maximum Expandable Capacity: Up to 8,448Wh with two B300 batteries
• Warranty: 5 Years
• Compatibility Note: Connected appliances must remain within the AC200PL’s applicable output limits. Solar arrays must provide a total open-circuit voltage between 12V and 145V, no more than 15A and no more than 1,200W.

Key Features & Benefits

• 2,304Wh Portable Battery Capacity: Stores 2,304Wh of energy for operating household appliances, refrigeration, power tools, communication systems, lighting, electronics and mobile equipment during outages or off-grid use.


• 2,400W Continuous Pure Sine Wave Output: Provides up to 2,400W of stable pure sine wave AC power for compatible household appliances, sensitive electronics, workshop equipment and RV loads.


• Up to 3,600W Power Lifting Mode: Power Lifting Mode allows the AC200PL to operate selected resistive heating appliances rated up to approximately 3,600W, including suitable heaters, kettles and hair dryers.


• 3,600W Surge Capability: Supports brief startup demand from compatible appliances and equipment requiring higher momentary power than their normal running wattage.


• 2,400W Turbo AC Charging: The integrated charging system can recharge the AC200PL to approximately 80% in around one hour and reach full capacity in approximately 1.5 hours under suitable conditions.


• Up to 1,200W Solar Charging: Accepts up to 1,200W of solar input through a wide 12V–145V DC range, allowing faster renewable charging from compatible portable or fixed solar-panel arrays.

12 Versatile Output Ports:
Provides:

• 4 × Australian 230V AC outlets

• 2 × 100W USB-C ports

• 2 × USB-A fast-charging ports

• 1 × Regulated 12V car outlet

• 1 × 48V RV output

• 2 × 15W wireless charging pads

This output selection allows multiple compatible AC, DC, USB and wireless devices to operate or recharge simultaneously.

• Dual 100W USB-C Power Delivery:
  Two USB-C ports provide up to 100W each for compatible laptops, tablets, smartphones, cameras, portable monitors and USB-C power banks.


• USB-A Fast Charging:Two USB-A outputs provide convenient charging for phones, lights, cameras, navigation equipment and other standard USB-powered electronics.


• Regulated 12V Car Outlet: The 12V/10A regulated car outlet provides up to 120W for compatible portable refrigerators, air pumps, automotive accessories and camping equipment.


• High-Power 48V RV Output: The integrated 48V/8A RV output provides up to 384W for compatible RV equipment and accessories, including supported BLUETTI D40 applications.


• Dual Wireless Charging Pads: Two integrated 15W wireless charging pads provide cable-free charging for compatible smartphones and accessories.


• Expandable Up to 8,448Wh: The AC200PL supports compatible B210P, B230 and B300 expansion batteries, allowing users to increase total storage for longer outages, remote travel and off-grid operation.


• Hot-Swappable Expansion Support: Compatible expansion batteries can be connected or replaced within supported system configurations, helping users increase runtime without replacing the main power station.


• Approximately 20ms UPS Protection: The AC200PL can transfer compatible connected equipment to battery power in approximately 20 milliseconds when the grid supply is interrupted.


• Wi-Fi and Bluetooth App Control: The BLUETTI app allows users to monitor battery level, charging power, output demand, estimated runtime, operating modes, system alerts and firmware updates.


• RV-Ready Power Design: The combination of high AC output, regulated DC power, a dedicated 48V RV outlet and expandable capacity makes the AC200PL suitable for caravans, campervans and larger mobile-energy systems.

Mechanical Specifications

• Product Type: Expandable LiFePO₄ Portable Power Station
• Dimensions: 420 × 280 × 366.5mm
• Dimensions in Inches: 16.5 × 11 × 14.4in
• Net Weight: Approximately 28.3kg / 62.4lb
• Installation Type: Freestanding portable placement
• Carrying Design: Integrated side handles
• Display Type: Integrated LCD status display
• Maximum Operating Noise: Approximately 50dB or lower under normal supported operation
• Charging Temperature: 0°C to 40°C / 32°F to 104°F
• Discharging Temperature: -20°C to 40°C / -4°F to 104°F
• Storage Temperature: Approximately -20°C to 40°C / -4°F to 104°F
• Water Resistance: Not waterproof
• Recommended Storage Charge: Approximately 40%–60%
• Long-Term Storage Maintenance: Recharge or complete a battery cycle approximately every three to six months
• Operating Orientation: Upright placement required
• Recommended Installation Location: Dry, stable and properly ventilated indoor, vehicle or protected outdoor area

The AC200PL should remain upright during operation, transportation and storage. It should not be exposed directly to rain, standing water, excessive humidity, corrosive environments, extreme heat or obstructed ventilation.

Electrical Performance

Battery Specifications

• Battery Capacity: 2,304Wh
• Battery Chemistry: LiFePO₄ / Lithium Iron Phosphate
• Battery Cycle Life: 3,500+ cycles to 80% original capacity
• Battery Management: Integrated BMS, MPPT controller and system protection
• Recommended Storage Charge: Approximately 40%–60%
• Long-Term Storage Maintenance: Recharge or cycle every three to six months
• Internal Battery Replacement: Not designed for unauthorised user replacement
• Expansion Battery Support: B210P, B230 and B300
• Maximum Expanded Capacity: 8,448Wh with two B300 expansion batteries

AC Output Specifications

• Number of Australian AC Outlets: 4
• AC Output Voltage: 230V
• AC Output Frequency: 50Hz
• Rated Combined AC Output: 2,400W
• Inverter Type: Pure Sine Wave
• Power Lifting Output: Up to 3,600W
• Surge Output: Up to 3,600W
• Supported Standard Loads: Compatible appliances and electronics requiring no more than 2,400W combined
• Power Lifting Compatibility: Selected resistive heating appliances requiring up to approximately 3,600W
• Output Limitation: The total standard AC load must remain within the AC200PL’s 2,400W continuous output rating.

Power Lifting Mode is intended primarily for selected resistive appliances. It may not support all air conditioners, compressors, motors or appliances with sensitive voltage requirements.

DC, USB and Wireless Output Specifications

• USB-C Ports: 2
• Maximum USB-C Output Per Port: 100W
• USB-A Ports: 2
• Maximum USB-A Output Per Port: Up to 18W
• Car Outlet: 1 × Regulated 12V DC, 10A
• Maximum Car Outlet Output: 120W
• RV Output: 1 × 48V DC, 8A
• Maximum RV Output: 384W
• Wireless Charging Pads: 2
• Maximum Wireless Charging Output: 15W per pad
• Total Output Ports: 12

The AC, DC, USB and wireless outputs can be used simultaneously, provided the total connected load remains within the relevant port and system output limits.

Input Specifications

• Maximum AC Input: 2,400W
• Turbo AC Charging Input: Up to 2,400W
• Maximum Solar Input: 1,200W
• Solar Input Voltage Range: 12V–145V DC
• Maximum Solar Input Current: 15A
• Car Charging Input: Compatible 12V or 24V vehicle cigarette lighter connection
• Generator Charging: Supported through a compatible regulated AC generator
• Lead-Acid Battery Charging: Supported with the appropriate BLUETTI charging cable
• Maximum Combined Input: 2,400W
• Solar Connector Requirement: Compatible MC4-equipped solar panels used with the supplied BLUETTI solar charging cable

Charging Performance

• Turbo AC Charging to 80%: Approximately 1 hour
• Full Turbo AC Charging: Approximately 1.5 hours
• Maximum Solar Charging: Approximately 2.5 hours with a continuous 1,200W input under ideal conditions
• 12V Vehicle Charging: Supported
• 24V Vehicle Charging: Supported
• Generator Charging: Supported through a suitable regulated AC generator
• Lead-Acid Battery Charging: Supported with the required cable
• Pass-Through Charging: Supported

Actual charging performance depends on:

• Available AC or generator input power

• Selected charging mode

• Solar-panel wattage

• Solar-array open-circuit voltage and current

• Sunlight intensity

• Weather and cloud conditions

• Panel orientation and angle

• Vehicle charging voltage

• Battery state of charge

• Battery and ambient temperature

• Connected loads during pass-through operation

• Expansion-battery configuration

• Cable condition and connection quality

UPS and Operating Modes

• UPS Switching Time: Approximately 20ms
• UPS Function: Automatically transfers compatible connected equipment to stored battery power when grid electricity is interrupted
• Pass-Through Operation: Allows compatible appliances to receive power while the AC200PL is charging
• Standard Charging Mode: Balances charging speed, temperature and operating noise
• Turbo Charging Mode: Enables the maximum supported AC charging rate
• Silent Charging Mode: Reduces charging power and fan noise for quieter operation
• Power Lifting Mode: Supports selected resistive appliances requiring more than 2,400W and up to approximately 3,600W
• Eco Mode: Automatically disables selected outputs when connected demand remains below the configured threshold
• Grid Self-Adaption Mode: Helps maintain charging from compatible weak or unstable AC sources
• App-Controlled Operation: Charging modes, output settings, Eco Mode, firmware updates and system monitoring can be accessed through the BLUETTI app
• The approximately 20ms UPS function is suitable for many household electronics and appliances. Equipment requiring zero-transfer-time online UPS protection should be assessed separately.

Warranty Information

• Warranty: 5-Year Hassle-Free Warranty
• Customer Support: Lifetime Customer Support
• Battery Cycle Rating: 3,500+ cycles to 80% original capacity
• Installation Requirement: Operate the AC200PL according to the supplied user manual and stated electrical limits.
• Appliance Requirement: Standard connected AC appliances must not exceed the 2,400W continuous output rating.
• Power Lifting Requirement: Power Lifting Mode should only be used with suitable resistive appliances rated below approximately 3,600W.
• Solar Compatibility Requirement: Connected panels must provide a combined open-circuit voltage between 12V and 145V, no more than 15A and no more than 1,200W.
• Expansion Battery Requirement: Use only compatible BLUETTI expansion batteries and approved connection cables.
• Moisture Protection: The AC200PL is not waterproof and should not be exposed directly to rain, water or excessive humidity.
• Cold-Weather Charging: Do not recharge the battery below 0°C.
• Battery Service: The internal battery pack is not designed for unauthorised user replacement or modification.
• Storage Recommendation: Store the power station upright in a dry and ventilated location with approximately 40%–60% charge and recharge it every three to six months.

Compatibility

• Compatible Standard AC Appliances: Devices operating within the 2,400W continuous output limit
• Power Lifting Compatibility: Selected resistive heating appliances rated up to approximately 3,600W
• Compatible Solar Input: Solar arrays providing 12V–145V open-circuit voltage, no more than 15A and no more than 1,200W
• Solar Connector Requirement: MC4-equipped solar panels used with the compatible BLUETTI solar charging cable

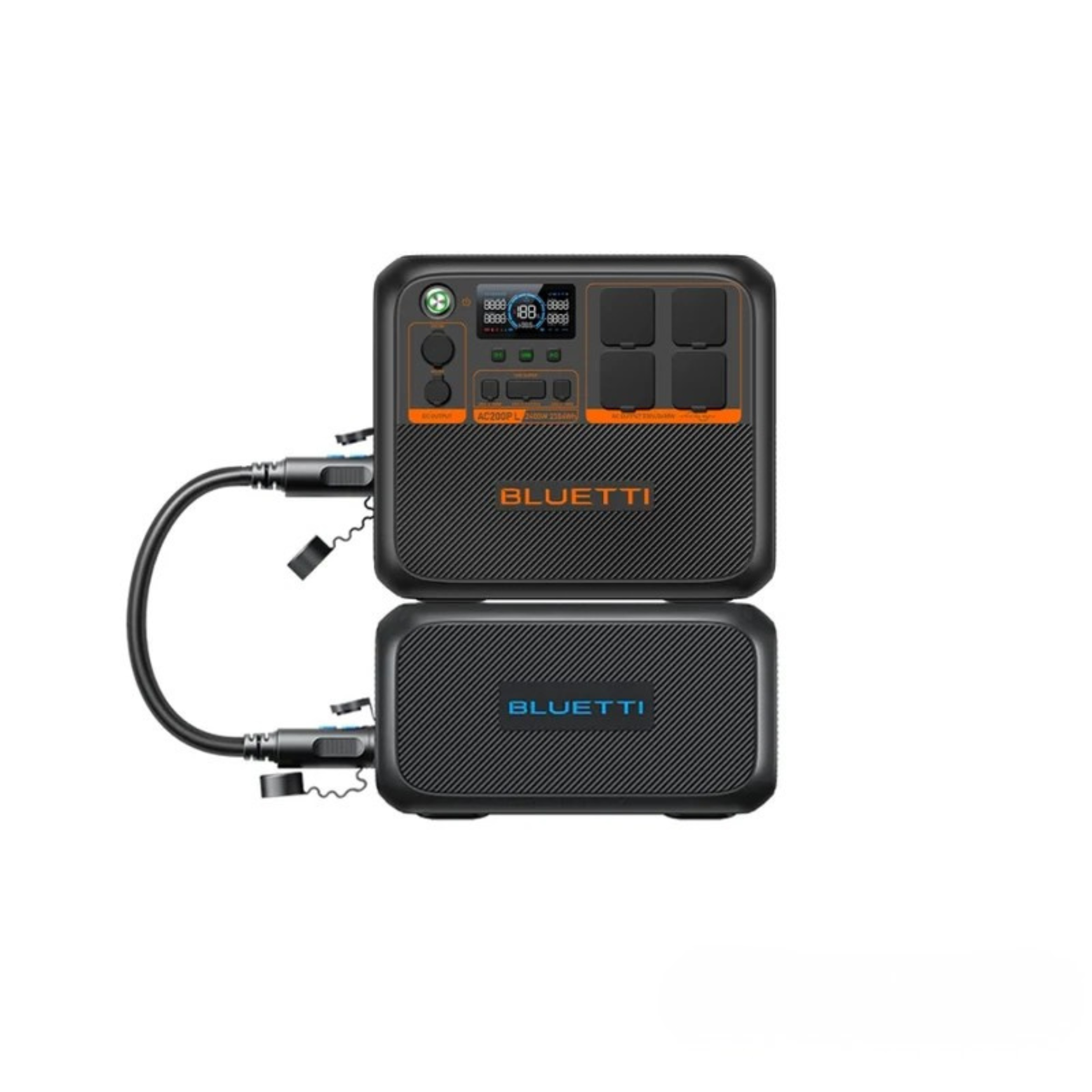

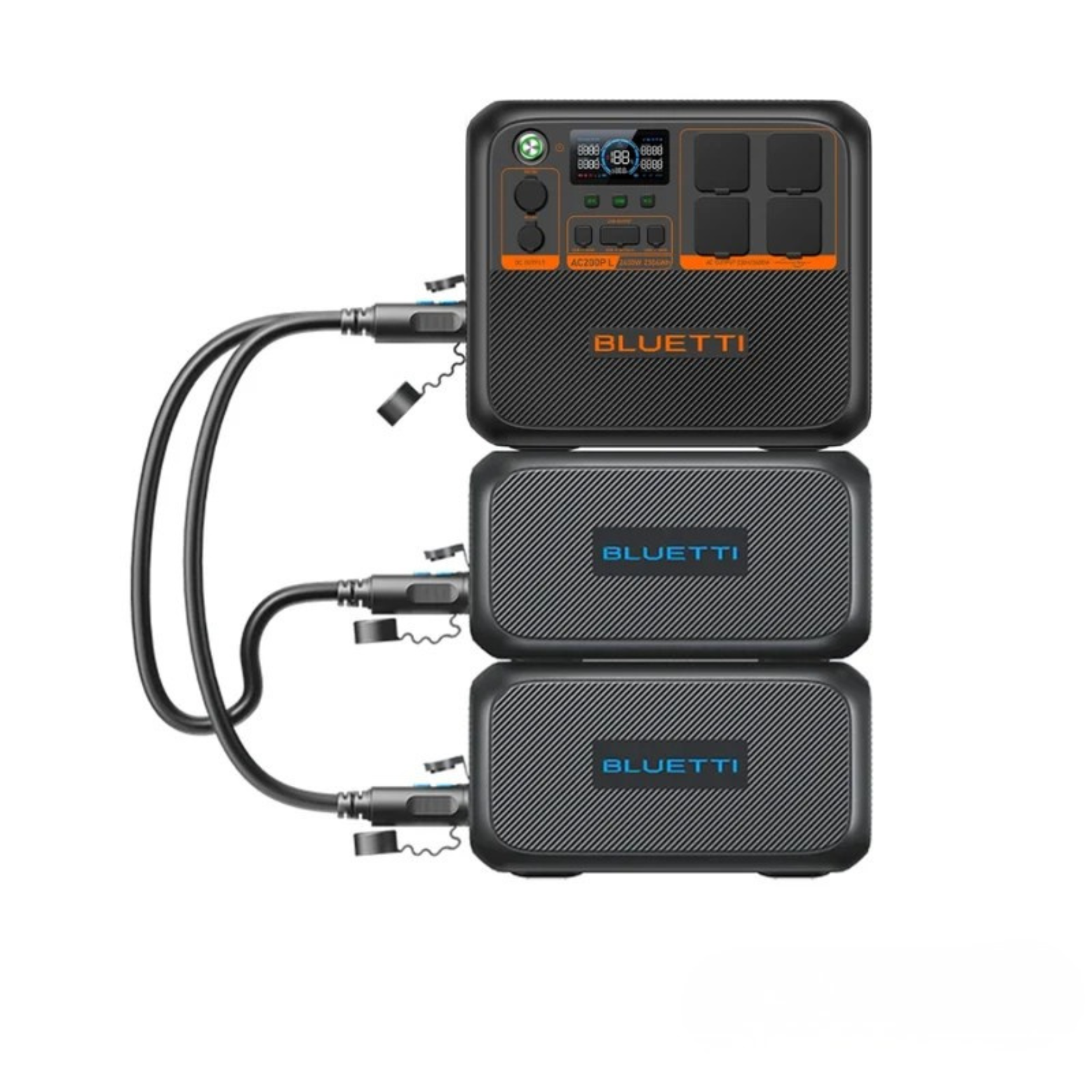

• B210P Expansion: Up to two compatible batteries
• B230 Expansion: Up to one compatible battery
• B300 Expansion: Up to two compatible batteries
• Capacity with Two B210P Batteries: Up to approximately 6,604Wh
• Capacity with One B230 Battery: Up to approximately 4,352Wh

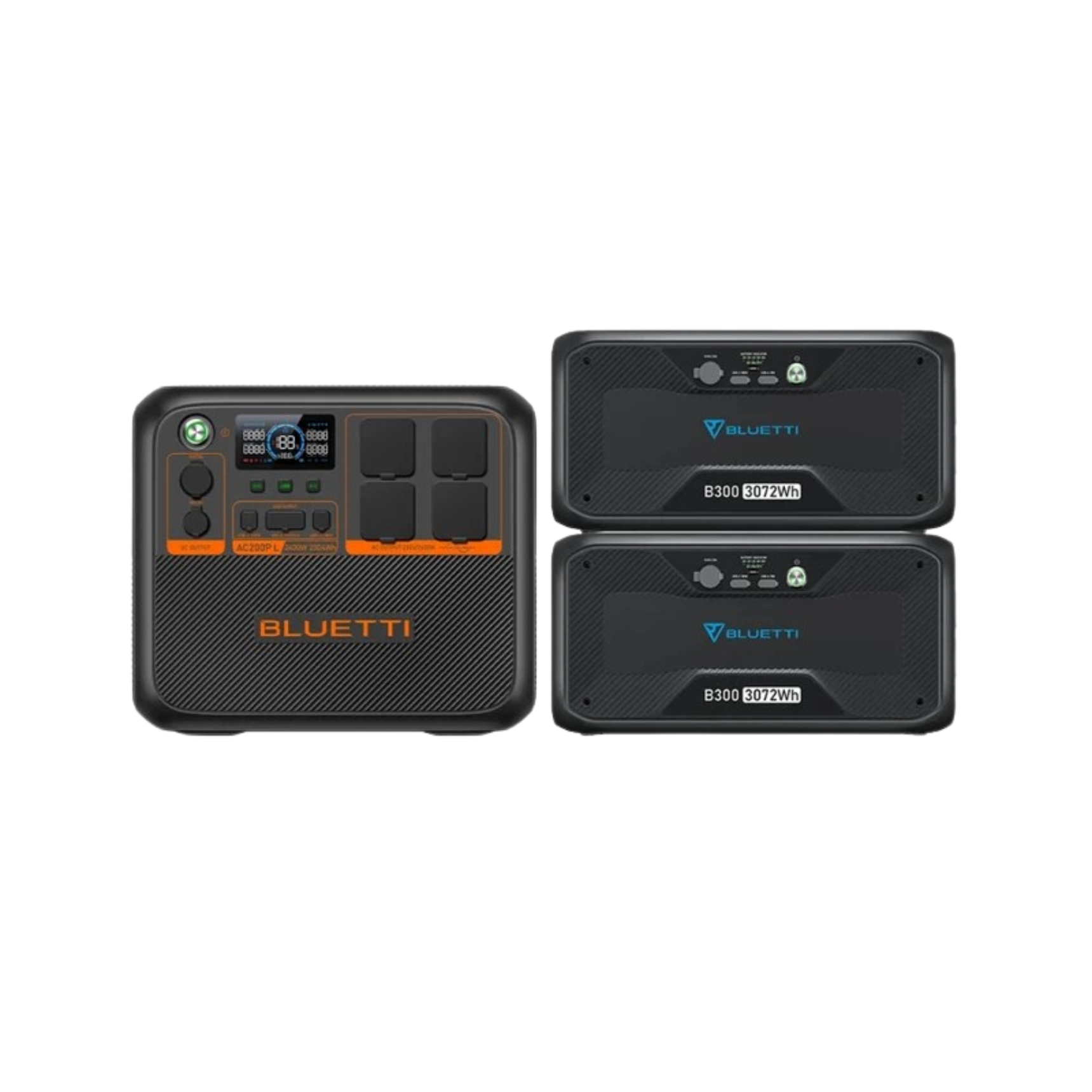

• Capacity with Two B300 Batteries: Up to 8,448Wh
• RV Accessory Compatibility: Compatible BLUETTI D40 DC charging accessory through the supported 48V system
• Mobile App Compatibility: BLUETTI App through Wi-Fi or Bluetooth
• UPS Compatibility: Household electronics and appliances that accept an approximately 20ms transfer time
• Not Suitable For: Appliances exceeding applicable output limits, solar arrays exceeding 145V DC, unsupported third-party batteries or direct exposure to wet outdoor environments
• Car Charging Compatibility: Compatible 12V and 24V vehicle cigarette lighter sockets
• Generator Compatibility: Compatible regulated AC generators providing the correct Australian voltage and frequency

Recommended Solar Configurations:

• Compatible BLUETTI 200W portable solar panels

• Compatible BLUETTI 350W portable solar panels

• Compatible BLUETTI 500W portable solar panels

• Electrically compatible third-party MC4 panels within the voltage, current and power limits

Expansion Battery Compatibility:

• BLUETTI B210P

• BLUETTI B230

• BLUETTI B300

For safe operation, confirm the wattage, startup demand, voltage, current, connector and cable requirements of every appliance, solar array, battery and charging source before connection.

Smart Energy Features

• Provides 2,304Wh of portable battery capacity

• Delivers 2,400W of continuous pure sine wave AC output

• Supports up to 3,600W through Power Lifting Mode

• Supports up to 3,600W of surge output

• Provides four Australian 230V AC outlets

• Provides two 100W USB-C Power Delivery ports

• Provides two USB-A fast-charging ports

• Provides one regulated 12V/10A car outlet

• Provides one 48V/8A RV output

• Provides two 15W wireless charging pads

• Powers or charges up to 12 compatible devices

• Supports up to 2,400W Turbo AC charging

• Recharges to approximately 80% in around one hour

• Supports up to 1,200W of solar charging

• Supports a wide 12V–145V solar-input range

• Supports 12V and 24V vehicle charging

• Supports compatible regulated-generator charging

• Supports lead-acid battery charging with the appropriate cable

• Provides approximately 20ms UPS switching

• Supports pass-through charging

• Uses long-life LiFePO₄ battery chemistry

• Provides more than 3,500 battery cycles

• Supports Wi-Fi and Bluetooth app control

• Supports Standard, Silent and Turbo charging modes

• Supports Eco Mode and Grid Self-Adaption Mode

• Supports B210P, B230 and B300 expansion batteries

• Expands to as much as 8,448Wh

• Supports compatible BLUETTI RV energy accessories

• Generates portable electricity without fuel, fumes or engine noise

Applications

• Home backup power systems

• Camping and outdoor adventures

• Caravanning and RV travel

• Campervan energy systems

• Road trips

• Portable refrigerator and freezer power

• Emergency preparedness

• Extended power outage backup

• Kitchen appliance operation

• Power tool operation

• Workshop and job-site equipment

• Laptop and mobile workstation power

• Smartphone and tablet charging

• Camera and videography equipment

• CPAP and compatible medical-device backup

• Lighting and communication equipment

• Outdoor events

• Remote working

• Fishing and recreational activities

• Television and projector power

• Drone and rechargeable-tool batteries

• Remote homes and cabins

• Small-business backup

• Off-grid renewable energy systems

Included Accessories

• BLUETTI AC200PL Portable Power Station × 1

• AC Charging Cable × 1

• DC Input Cable × 1

• Solar Charging Cable × 1

• Car Charging Cable × 1

• Grounding Screw × 1

• User Manual × 1

• Warranty Card × 1

Optional Accessories

• BLUETTI B210P Expansion Battery

• BLUETTI B230 Expansion Battery

• BLUETTI B300 Expansion Battery

• Compatible BLUETTI Portable Solar Panels

• BLUETTI D40 DC Charging Accessory

• Lead-Acid Battery Charging Cable

• Additional Expansion Battery Connection Cables

Package contents may vary according to the selected bundle or supplied market version. Solar panels, expansion batteries, RV accessories and optional charging cables are sold separately unless included in a selected package.

System Benefits When Paired with Compatible BLUETTI Solar Panels and Expansion Batteries

• Provides 2,304Wh of built-in portable energy storage

• Delivers 2,400W of continuous AC power

• Supports selected resistive appliances through 3,600W Power Lifting Mode

• Supports brief surge demand up to approximately 3,600W

• Recharges rapidly through up to 2,400W AC input

• Supports renewable charging through up to 1,200W solar input

• Helps reduce reliance on wall outlets and fuel generators

• Expands with B210P, B230 or B300 batteries

• Increases total storage to as much as 8,448Wh

• Supports longer outages and extended off-grid operation

• Provides 12 outputs for compatible appliances and electronics

• Supports laptops through dual 100W USB-C ports

• Provides regulated 12V power for portable refrigeration and vehicle accessories

• Provides 48V output for compatible RV energy equipment

• Provides dual wireless charging for compatible smartphones

• Offers approximately 20ms UPS backup during grid interruptions

• Supports pass-through charging for compatible continuous-use applications

• Provides Wi-Fi and Bluetooth monitoring through the BLUETTI app

• Uses durable LiFePO₄ battery technology for long-term operation

• Supports home backup, caravanning, workshop and remote-work applications

• Provides quiet and emission-free stored energy

• Allows users to expand storage progressively as their energy requirements grow

• Supports dependable off-grid operation when paired with correctly specified solar panels, expansion batteries and approved BLUETTI accessories

Contact PVtoEV for compatibility guidance and complete BLUETTI AC200PL, expansion battery, portable solar panel, RV accessory and charging-system recommendations.
