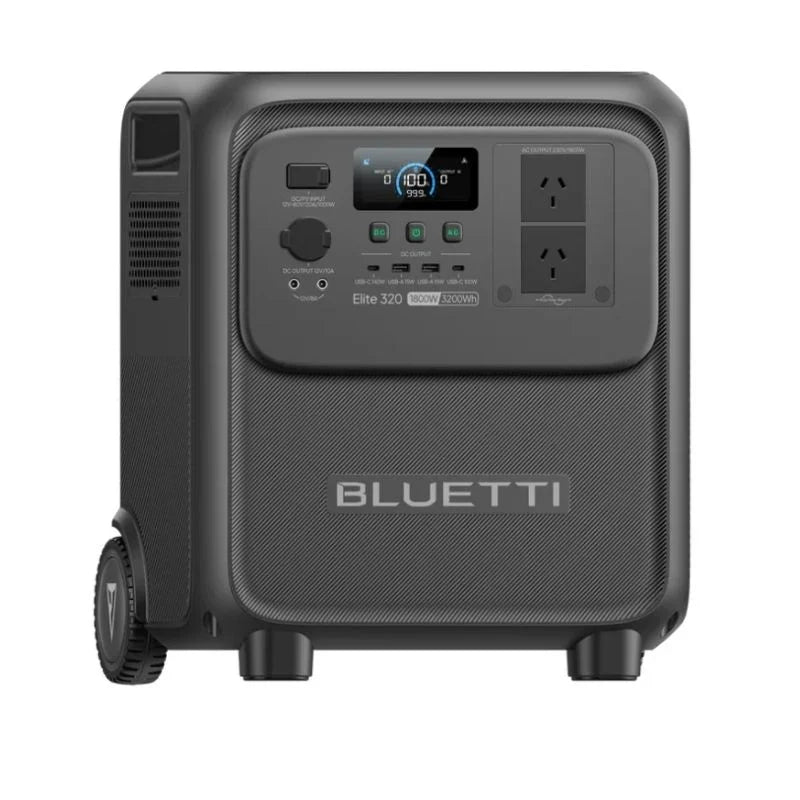

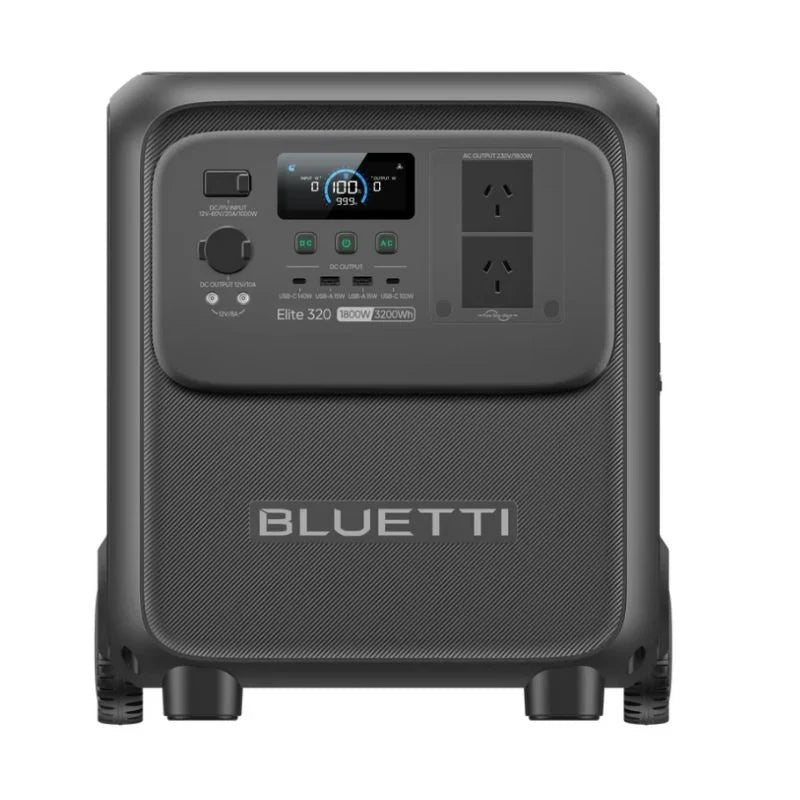

BLUETTI Elite 320 Portable Power Station - 3,200Wh | 1800W

The BLUETTI Elite 320 Portable Power Station is a high-capacity 3,200Wh LiFePO₄ energy solution designed for home backup, camping, caravanning, outdoor events, remote work and off-grid power. Delivering 1800W of continuous AC output, up to 2700W through Power Lifting Mode and 3600W of surge capacity, it can operate refrigerators, communications equipment, kitchen appliances, entertainment systems and other compatible devices. With integrated wheels, an extendable handle, up to 1,000W solar input, 10ms UPS switching, nine output ports and Wi-Fi and Bluetooth app control, the Elite 320 combines substantial energy storage with practical mobility.

Product Information

• Brand: BLUETTI
• Model: Elite 320
• Product Type: Portable Power Station / Mobile Home Backup System
• Battery Capacity: 3,200Wh
• Rated Battery Capacity: 100Ah
• Battery Chemistry: LiFePO₄ / Lithium Iron Phosphate
• Rated AC Output: 1,800W
• Power Lifting Output: Up to 2,700W
• Surge Output: Up to 3,600W
• AC Output Voltage: 230V
• Inverter Type: Pure Sine Wave
• Maximum AC Charging Input: 1,440W
• Maximum Solar Input: 1,000W
• Solar Input Range: 12V–60V DC
• Maximum Solar Input Current: 20A
• Advertised Combined AC and Solar Charging: Up to approximately 2,000W
• Total Output Ports: 9
• UPS Switching Time: ≤10ms
• Wireless Connectivity: Wi-Fi and Bluetooth
• App Support: BLUETTI App
• Pass-Through Charging: Supported
• Mobility System: Telescopic handle, integrated wheels and side carrying handles
• Protection Rating: IP20
• Warranty: 5 Years
• Compatibility Note: Connected appliances must remain within the Elite 320’s applicable output limits. Solar panels must provide an open-circuit voltage between 12V and 60V, no more than 20A and no more than 1,000W.

Key Features & Benefits

• 3,200Wh High-Capacity Battery: Stores 3.2kWh of energy for operating essential electronics, refrigeration, communications equipment, lighting, entertainment devices and selected household appliances during outdoor activities or power outages.


• 1,800W Continuous AC Output: Provides up to 1,800W of stable AC output through two Australian outlets, supporting a wide range of household, recreational and workplace appliances.


• Up to 2,700W Power Lifting Mode: Power Lifting Mode allows the Elite 320 to operate selected resistive appliances rated above its standard output and up to approximately 2,700W. It is intended primarily for suitable heating appliances rather than sensitive electronics, compressors or motor-driven equipment.


• 3,600W Surge Capability: Provides up to 3,600W of short-duration surge capacity for compatible appliances with temporary startup-power requirements.

Nine Versatile Output Ports:
Provides:

• 2 × Australian 230V AC outlets

• 2 × 15W USB-A ports

• 1 × 100W USB-C port

• 1 × 140W USB-C port

• 1 × 120W regulated cigarette lighter outlet

• 2 × DC5521 outputs with 96W combined output

This port selection allows multiple compatible AC, DC and USB devices to operate or recharge simultaneously.

• 140W High-Power USB-C Charging: The 140W USB-C port supports compatible laptops, tablets, power banks and professional USB-C equipment requiring higher charging power.


• Additional 100W USB-C Output: A separate 100W USB-C Power Delivery port provides fast charging for compatible laptops, portable monitors, tablets, smartphones and cameras.


• Regulated 12V Car Outlet: The cigarette lighter outlet provides up to 120W for compatible portable refrigerators, air pumps, vehicle accessories and camping equipment.


• Dual DC5521 Outputs: Two DC5521 ports provide up to 96W combined output for compatible routers, lighting, communications equipment and other DC-powered devices.


• Up to 1,440W AC Charging: The built-in AC charging system supports up to 1,440W of input without requiring a separate external charging brick.


• Up to 1,000W Solar Charging: Accepts up to 1,000W of solar input through a 12V–60V DC, 20A connection, supporting renewable charging from compatible portable or fixed solar arrays.


• Combined AC and Solar Charging: Using compatible AC and solar input together can recharge the Elite 320 to approximately 80% in around 1.4 hours at an advertised combined charging rate of approximately 2,000W.


• 10ms UPS Protection: The integrated UPS can transfer compatible connected equipment to battery power within approximately 10 milliseconds during a grid outage, helping keep refrigerators, routers, security systems and computers operating.

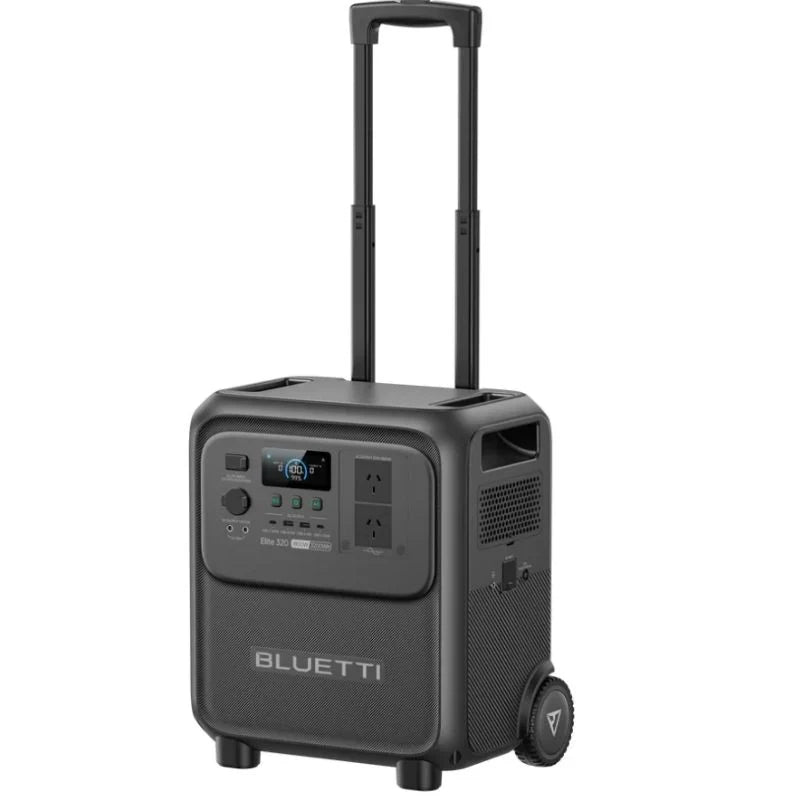

• Integrated Wheels and Telescopic Handle: Built-in wheels and an extendable handle allow the 34kg power station to be rolled rather than carried over suitable surfaces.


• Multiple Carrying Options: Side handles provide an additional lifting option when loading the Elite 320 into a vehicle or moving it over stairs and uneven surfaces.


• Remote App Monitoring: The BLUETTI app allows users to monitor energy usage, battery status, input and output power and compatible operating settings through Wi-Fi or Bluetooth.


• Remote Wake-Up and Timer Control: Supported app functions include remote system wake-up and scheduled on/off timers for more convenient energy management.


• Grid Self-Adaption Mode: Helps the Elite 320 charge from compatible unstable grid supplies or generators by adjusting to variations in input power quality.


• PowerArmor Safety System: The Elite 320 combines LiFePO₄ battery technology, battery-management algorithms, thermal control and electrical protection to support dependable operation in backup and off-grid applications.

Flexible Charging Methods:
The Elite 320 supports:

• AC wall charging

• Compatible solar-panel charging

• 12V or 24V vehicle charging

• Compatible pure sine wave generator charging

• Compatible lead-acid battery charging

• Combined AC and solar charging

Mechanical Specifications

• Product Type: Mobile LiFePO₄ Portable Power Station
• Dimensions Without Extended Handle: 403 × 284 × 460mm
• Dimensions Without Extended Handle in Inches: 15.87 × 11.18 × 18.11in
• Dimensions with Extended Handle: 403 × 284 × 1,010mm
• Dimensions with Extended Handle in Inches: 15.87 × 11.18 × 39.76in
• Net Weight: Approximately 34kg / 74.96lb
• Mobility Equipment: Integrated wheels and telescopic pull handle
• Additional Carrying Equipment: Integrated side handles
• Installation Type: Freestanding mobile placement
• Display Type: Integrated LCD system display
• Protection Rating: IP20
• Charging Temperature: 0°C to 40°C / 32°F to 104°F
• Discharging Temperature: -20°C to 40°C / -4°F to 104°F
• General Storage Temperature: Approximately -10°C to 40°C / 14°F to 104°F
• Recommended Long-Term Storage Temperature: 10°C to 30°C / 50°F to 86°F when stored for more than one month
• Recommended Storage Charge: Approximately 40%–60%
• Storage Maintenance: Complete a full charging and discharging cycle approximately every three months
• Water Resistance: Not waterproof
• Recommended Installation Location: Dry, stable and properly ventilated indoor, vehicle or protected outdoor area

The Elite 320 should remain on a stable surface during operation and should not be exposed to rain, standing water, excessive humidity, extreme heat or obstructed ventilation. Its wheels are intended to improve mobility but the unit should still be handled carefully and protected from drops, violent impacts and excessive tilting.

Electrical Performance

Battery Specifications

• Battery Capacity: 3,200Wh
• Rated Battery Capacity: 100Ah
• Battery Chemistry: LiFePO₄ / Lithium Iron Phosphate
• Battery Management: Integrated battery-management and electrical protection systems
• Maximum Recommended Depth of Discharge for Runtime Estimates: Approximately 95%
• Inverter Efficiency Used in Manufacturer Runtime Calculations: Greater than approximately 92%
• Approximate Internal Idle Consumption: Approximately 10W under the manufacturer’s runtime calculation method
• Recommended Storage Charge: 40%–60%
• Long-Term Storage Maintenance: Complete a full charging and discharging cycle approximately every three months
• Native Expansion Battery Support: No dedicated external expansion-battery compatibility is stated on the official Australian Elite 320 product listing or current user manual.

The Elite 320 is designed as a self-contained 3,200Wh power station. A lead-acid battery may be used as a compatible charging source with appropriate equipment, but this should not be treated as direct capacity expansion.

AC Output Specifications

• Number of Australian AC Outlets: 2
• AC Output Voltage: 230V
• Rated Combined AC Output: 1,800W
• Inverter Type: Pure Sine Wave
• Power Lifting Output: Up to 2,700W
• Surge Output: Up to 3,600W
• Supported Standard Loads: Compatible appliances and electronics requiring no more than 1,800W combined
• Power Lifting Compatibility: Selected resistive appliances requiring more than 1,800W and up to approximately 2,700W
• Startup Demand: Compatible appliances with short startup surges may be supported within the 3,600W surge limit
• Output Limitation: The total standard AC load must remain within the Elite 320’s 1,800W continuous output rating.

Appliances with motors or compressors may require two to four times their rated running power during startup. Users should confirm both running wattage and startup demand before connecting refrigerators, pumps, power tools or similar equipment.

DC and USB Output Specifications

• USB-A Ports: 2
• Maximum USB-A Output Per Port: 15W
• Maximum Combined USB-A Output: 30W
• USB-C Port 1: Up to 100W
• USB-C Port 2: Up to 140W
• Cigarette Lighter Outlet: 1
• Maximum Cigarette Lighter Output: 120W
• DC5521 Ports: 2
• Maximum Combined DC5521 Output: 96W
• Total Physical Output Ports: 9

The available AC, USB and DC ports can be used together, provided each port and the total system remain within their respective electrical limits.

Input Specifications

• Maximum AC Input: 1,440W
• AC Input Voltage: 230V
• Standard AC Charging Mode: Approximately 1,000W
• Turbo AC Charging Mode: Up to approximately 1,440W
• Silent AC Charging Mode: Approximately 800W
• Maximum Solar Input: 1,000W
• Solar Input Voltage Range: 12V–60V DC
• Maximum Solar Input Current: 20A
• Vehicle Charging: Compatible 12V or 24V vehicle connection
• Generator Charging: Supported from a compatible pure sine wave AC generator
• Lead-Acid Battery Charging: Supported with appropriate compatible charging equipment
• Combined AC and Solar Charging: Supported
• Advertised Combined AC and Solar Charging Rate: Approximately 2,000W
• Solar Connector Requirement: Compatible MC4-equipped panels used with an appropriate MC4-to-XT60 solar charging cable.

Charging Performance

• Combined AC and Solar Charging to 80%: Approximately 1.4 hours at an advertised 2,000W combined input
• AC Charging to 80%: Approximately 2 hours using up to 1,440W AC input
• Solar Charging to Full: Approximately 5 hours with suitable solar input under the conditions stated on the Australian product page
• Standard AC Charging Mode: Approximately 1,000W
• Turbo AC Charging Mode: Up to 1,440W
• Silent AC Charging Mode: Approximately 800W
• 12V Vehicle Charging: Supported
• 24V Vehicle Charging: Supported
• Generator Charging: Supported
• Lead-Acid Battery Charging: Supported with compatible equipment
• Pass-Through Charging: Supported for compatible connected equipment

Actual charging performance depends on:

• Available AC or generator input

• Selected charging mode

• Solar-panel wattage

• Solar open-circuit voltage and current

• Sunlight intensity

• Weather and cloud conditions

• Panel orientation and angle

• Vehicle charging voltage

• Battery state of charge

• Battery and ambient temperature

• Connected loads during pass-through operation

• Cable condition and connection quality

UPS and Operating Modes

• UPS Switching Time: ≤10ms
• UPS Function: Automatically transfers compatible connected equipment to battery power when grid electricity is interrupted
• Pass-Through Operation: Allows compatible appliances to receive power while the Elite 320 is connected to AC input
• Standard Charging Mode: Uses approximately 1,000W for balanced everyday charging
• Turbo Charging Mode: Uses up to approximately 1,440W when faster recharging is required
• Silent Charging Mode: Reduces charging power to approximately 800W for quieter operation
• Power Lifting Mode: Supports selected resistive appliances requiring more than 1,800W and up to approximately 2,700W
• Eco Mode: Automatically disables selected outputs after a configured period of low or no power demand
• Grid Self-Adaption Mode: Helps the Elite 320 charge from compatible unstable grid or generator sources
• System Switch Recovery: Remembers AC and DC output settings after low-battery shutdown and can restore them when sufficient charge or grid input becomes available
• Remote Wake-Up: Allows compatible remote system activation through the BLUETTI app
• Timer Control: Allows users to configure supported on/off schedules through the app

The ≤10ms UPS function is suitable for many household appliances, networking devices and computers. Equipment requiring a zero-transfer-time online UPS should be assessed separately.

Warranty Information

• Warranty: 5-Year Product Warranty
• Customer Support: BLUETTI Customer Support
• Installation Requirement: Operate the Elite 320 according to the supplied user manual and stated electrical limits.
• Appliance Requirement: Standard connected AC appliances must remain within the 1,800W continuous output rating.
• Power Lifting Requirement: Power Lifting Mode should only be used with compatible resistive appliances rated below approximately 2,700W.
• Solar Compatibility Requirement: Connected panels must provide a combined open-circuit voltage between 12V and 60V, no more than 20A and no more than 1,000W.
• Generator Requirement: Use a compatible pure sine wave generator and enable Grid Self-Adaption Mode where appropriate.
• Moisture Protection: The Elite 320 has an IP20 rating and is not waterproof.
• Cold-Weather Charging: Do not recharge the battery below 0°C.
• Handling Requirement: Avoid dropping, violently impacting or excessively tilting the unit.
• Grounding Requirement: Use the grounding terminal and supplied grounding screw where grounding is required by the installation or charging arrangement.
• Storage Recommendation: Store the power station in a dry and ventilated location at approximately 40%–60% charge and cycle the battery approximately every three months.
• Firmware Recommendation: Update the Elite 320 to the latest available firmware through the BLUETTI app before regular use.

Compatibility

• Compatible Standard AC Appliances: Devices operating within the 1,800W continuous output limit
• Power Lifting Compatibility: Selected resistive appliances rated up to approximately 2,700W
• Surge Compatibility: Compatible equipment with short startup demand within the 3,600W surge limit
• Compatible Solar Input: Solar arrays providing 12V–60V open-circuit voltage, no more than 20A and no more than 1,000W
• Solar Connector Requirement: Compatible MC4-equipped panels used with an appropriate MC4-to-XT60 cable

• Generator Compatibility: Compatible pure sine wave generators supplying the correct Australian voltage and frequency

• Lead-Acid Battery Charging: Supported with the appropriate compatible charging equipment

• Mobile App Compatibility: BLUETTI App through Wi-Fi and Bluetooth

• UPS Compatibility: Household electronics and appliances that accept a transfer time of up to approximately 10ms

• Expansion Battery Compatibility: Native expansion-battery compatibility is not listed for the Elite 320 in the official Australian product specifications.

• Not Suitable For: Appliances exceeding applicable output limits, solar arrays exceeding 60V DC, direct exposure to wet outdoor conditions or unsupported grid-connected operation

Recommended Solar Configurations:

• Compatible BLUETTI portable solar panels

• Multiple electrically compatible panels configured within the voltage, current and power limits

• Compatible third-party MC4-equipped solar panels

Vehicle Charging Compatibility:

• Compatible 12V vehicle cigarette lighter outlets

• Compatible 24V vehicle cigarette lighter outlets

• Compatible BLUETTI Charger 1 vehicle charging configurations

USB-C Device Compatibility:

• Compatible laptops

• Tablets

• Smartphones

• Portable monitors

• Cameras

• USB-C power banks

DC Device Compatibility:

• Portable refrigerators

• Routers and communications equipment

• DC lighting

• Compatible vehicle accessories

• Selected DC5521-powered devices

For safe operation, confirm the rated wattage, startup demand, voltage, current, polarity and connector requirements of every appliance, solar panel and charging source before connection.

Smart Energy Features

• Provides 3,200Wh of portable battery capacity

• Delivers 1,800W of continuous AC output

• Supports selected resistive appliances through 2,700W Power Lifting Mode

• Supports up to 3,600W of surge output

• Provides two Australian 230V AC outlets

• Provides two 15W USB-A ports

• Provides one 100W USB-C Power Delivery port

• Provides one 140W USB-C Power Delivery port

• Provides one regulated 120W cigarette lighter outlet

• Provides two DC5521 outputs with 96W combined power

• Provides nine physical output ports

• Supports up to 1,440W AC charging

• Supports Standard, Turbo and Silent AC charging modes

• Supports up to 1,000W solar charging

• Supports combined AC and solar charging

• Supports 12V and 24V vehicle charging

• Supports compatible generator charging

• Supports compatible lead-acid battery charging

• Provides ≤10ms UPS switching

• Supports pass-through operation

• Uses LiFePO₄ battery chemistry

• Supports Wi-Fi and Bluetooth app control

• Supports remote system wake-up

• Supports configurable timer functions

• Supports Eco Mode

• Supports Grid Self-Adaption Mode

• Includes integrated wheels

• Includes an extendable telescopic handle

• Includes side carrying handles

• Generates stored electricity without fuel, exhaust fumes or engine noise

Applications

• Home backup power

• Refrigerator and freezer backup

• Wi-Fi router and networking equipment

• Security camera systems

• Camping and outdoor adventures

• Caravanning and RV travel

• Road trips

• Outdoor events and festivals

• Off-grid work sites

• Remote workstations

• Laptop and computer power

• Smartphone and tablet charging

• Television and entertainment systems

• Kitchen appliance operation

• Portable refrigerator power

• Lighting and communications equipment

• Camera and videography equipment

• Drone and rechargeable-battery charging

• Emergency preparedness

• Power outage backup

• Small-business backup

• Remote homes and cabins

• Compatible power tool operation

• Solar energy storage

Included Accessories

• BLUETTI Elite 320 Portable Power Station × 1

• AC Charging Cable × 1

• Grounding Screw – M5 × 10mm × 1

• User Manual and Product Documentation × 1

Optional Accessories

• Car Charging Cable

• MC4-to-XT60 Solar Charging Cable

• Compatible BLUETTI Portable Solar Panels

• Solar Extension Cables

• Compatible Lead-Acid Battery Charging Equipment

• BLUETTI Charger 1 Vehicle Charging System

• Protective Storage or Transport Accessories

The car charging cable, solar charging cable, solar panels and other optional accessories are not included in the standard package unless supplied as part of a selected bundle.

System Benefits When Paired with Compatible BLUETTI Solar Panels and Charging Accessories

• Provides 3,200Wh of built-in portable energy storage

• Delivers 1,800W of continuous AC power

• Supports selected resistive appliances through 2,700W Power Lifting Mode

• Supports brief startup demand up to approximately 3,600W

• Recharges through up to 1,440W AC input

• Supports renewable charging through up to 1,000W solar input

• Supports combined AC and solar charging

• Reaches approximately 80% charge in around 1.4 hours using suitable combined input

• Helps reduce reliance on wall outlets and fuel generators

• Provides nine outputs for compatible appliances and electronics

• Supports high-power laptops through the 140W USB-C port

• Provides an additional 100W USB-C charging port

• Provides regulated 12V power for portable refrigeration and vehicle accessories

• Provides DC5521 outputs for compatible communications and lighting equipment

• Offers ≤10ms UPS backup during grid interruptions

• Supports pass-through operation for compatible continuous-use applications

• Provides Wi-Fi and Bluetooth monitoring through the BLUETTI app

• Supports remote wake-up and timer-based control

• Uses integrated wheels and a telescopic handle for easier transport

• Supports home backup, camping, caravanning, outdoor events and remote-work applications

• Provides quiet and emission-free stored energy

• Supports dependable off-grid use when paired with correctly specified solar panels, charging cables and compatible BLUETTI accessories

Contact PVtoEV for compatibility guidance and complete BLUETTI Elite 320, portable solar panel, vehicle charging and off-grid power system recommendations.
