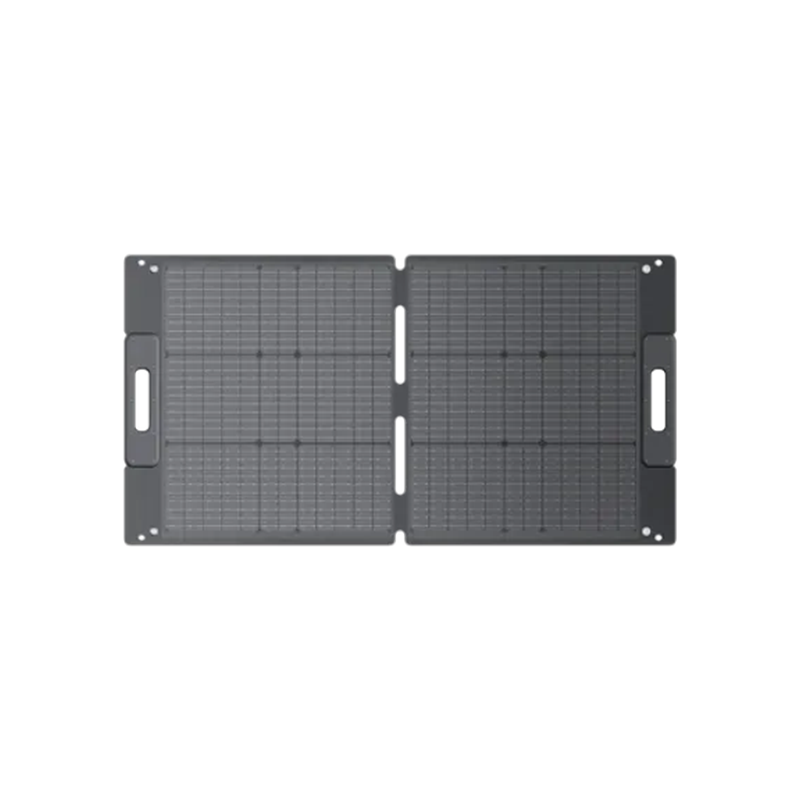

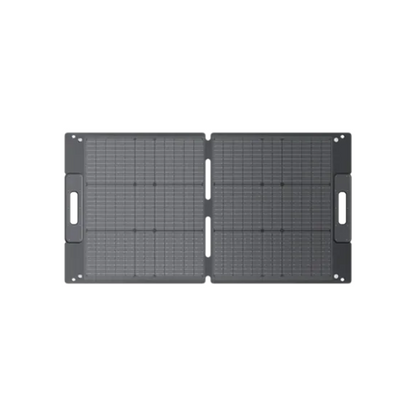

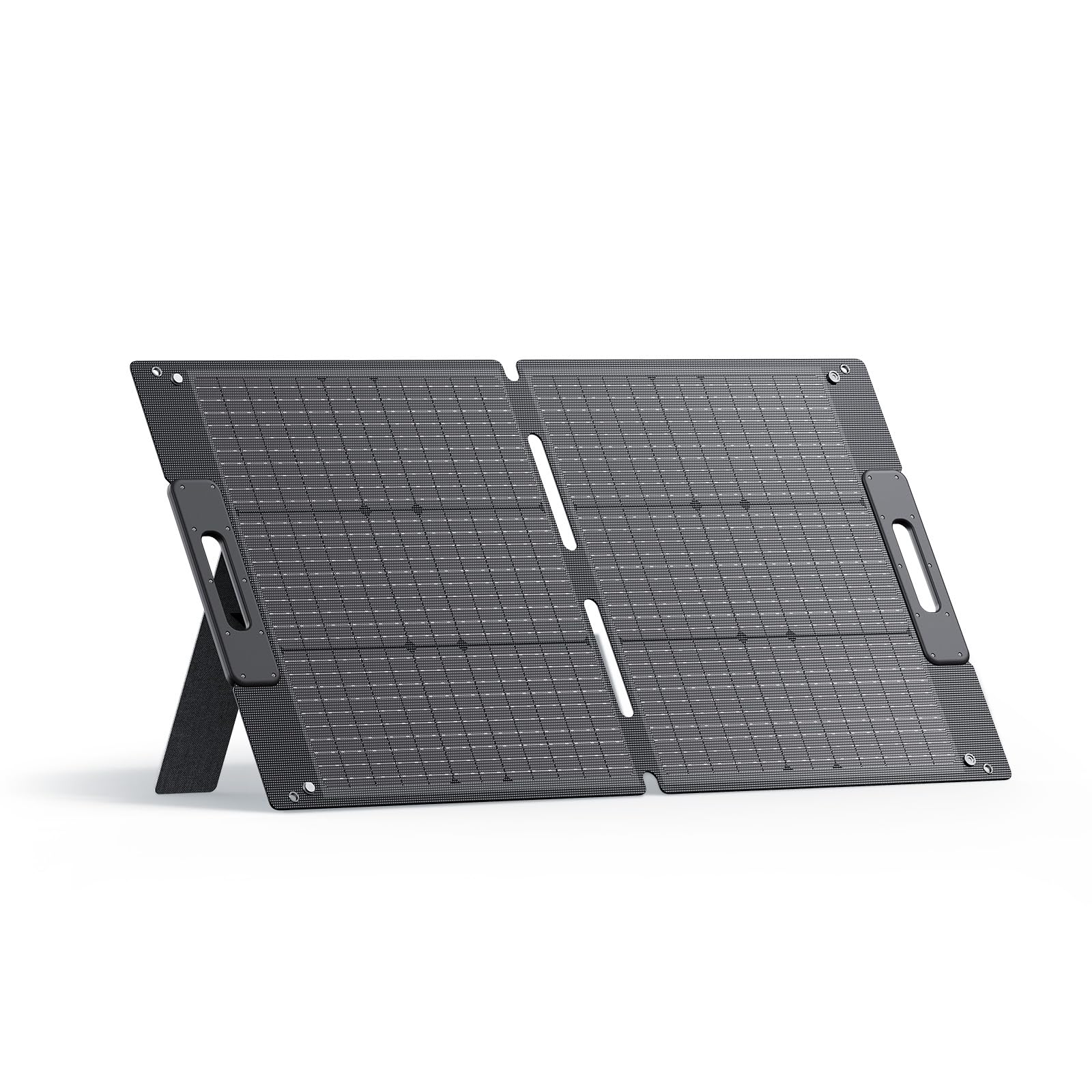

BLUETTI PV100 – 100W Foldable Solar Panel

The BLUETTI 100W Foldable Solar Panel is a lightweight and portable solar charging solution designed for compatible BLUETTI power stations, solar generators, camping, caravanning, road trips, outdoor activities, and emergency backup use. Built with high-efficiency monocrystalline solar cells, durable ETFE coating, a compact two-fold design, and standard MC4 connectors, it provides convenient renewable energy for portable and off-grid power applications.

Product Information

• Brand: BLUETTI
• Product Name: BLUETTI 100W Solar Panel
• Maximum Power: 100W
• Solar Cell Type: Monocrystalline Silicon

• Cell Efficiency: Up to 23.4%

• Cell Lamination: ETFE / Ethylene Tetrafluoroethylene

• Open-Circuit Voltage: 24.62V

• Short-Circuit Current: 5.13A

• Connector Type: Standard MC4 Connector

• Folding Sections: 2

• Water Resistance: IP67

• Product Type: Foldable Portable Solar Panel



Key Features & Benefits

• 100W Portable Solar Power: Delivers up to 100W of rated solar output for charging compatible BLUETTI portable power stations and supported third-party solar generators.


• Up to 23.4% Solar Conversion Efficiency: Uses high-efficiency monocrystalline silicon solar cells to convert available sunlight into usable electrical power.


• Foldable and Portable Design: The lightweight two-section folding construction makes the panel easier to carry, transport, set up, and store during outdoor travel.


• Durable ETFE Coating: Features a long-lasting ETFE laminated surface designed to support improved light transmission, weather resistance, and outdoor durability.


• Standard MC4 Connectivity: Built with standard MC4 connectors for convenient connection to compatible BLUETTI power stations and supported third-party solar generators.


• IP67 Water Resistance: Provides protection against splashes, dust, and temporary water exposure during outdoor use. The panel should not be left in prolonged rain or submerged for extended periods.


• Clean Renewable Energy: Generates electricity directly from sunlight without fuel, emissions, or operating noise, making it suitable for outdoor and off-grid applications.


• Easy Outdoor Setup: The foldable construction allows the panel to be quickly unfolded and positioned in direct sunlight whenever portable solar charging is required.


Mechanical Specifications

• Product Type: Foldable Portable Solar Panel

• Weight: 10.9 lb / 4.95 kg

• Dimensions When Unfolded: 23.4 × 44.5 in / 595 × 1,132 mm

• Dimensions When Folded: 23.4 × 22.2 × 2.2 in / 595 × 564.5 × 55 mm

• Folding Sections: 2

• Surface Material: ETFE laminated coating

• Installation Type: Portable outdoor placement

• Portability: Lightweight folding design with compact storage form

• Operating Temperature: 14°F to 149°F / -10°C to 65°C

• Best Working Temperature: 77°F / 25°C

Electrical Performance

Solar Panel Specifications

• Maximum Power: 100W

• Solar Cell Type: Monocrystalline Silicon

• Cell Efficiency: Up to 23.4%

• Cell Lamination: ETFE / Ethylene Tetrafluoroethylene

• Open-Circuit Voltage: 24.62V

• Short-Circuit Current: 5.13A

Output Specifications

• Rated Solar Output: Up to 100W

• Output Connector: Standard MC4 Connector

• Direct USB Output: Not Supported

• Power Generation Type: Direct-current solar output for compatible power stations and solar generators

Warranty Information

• Warranty: 12 Months

• Certifications: FCC, CE, and RoHS

• Model Notice: The specific 100W solar panel supplied may vary. Users should refer to the actual product and included user manual.

• Panel Combination Notice: Do not combine different BLUETTI 100W solar panel models unless BLUETTI confirms their electrical compatibility.

Compatibility

• Compatible Products: BLUETTI portable power stations with compatible solar input specifications

• Third-Party Compatibility: Supported power stations and solar generators using MC4 connectors and a compatible input voltage range

• Supported Connections: Series or parallel connection with electrically compatible BLUETTI PV100, PV100L, and PV100D panels

• Compatibility Requirement: The connected power station must support the panel’s voltage, current, wattage, and MC4 connection specifications

• Important Limitation: Avoid connecting the panel with incompatible brands or solar panels that have different voltage and current ratings.

Solar Energy Features

• Supports renewable solar charging

• Supports compatible BLUETTI portable power stations

• Supports compatible third-party solar generators

• Uses high-efficiency monocrystalline solar cells

• Features durable ETFE surface lamination

• Supports standard MC4 solar connectivity

• Folds into a compact form for transportation and storage

• Provides silent and fuel-free electricity generation

• Designed for temporary outdoor and off-grid use

• Supports portable emergency power station charging

Applications

• Camping and outdoor adventures
• Caravanning and RV travel
• Road trips
• Off-grid power station charging
• Remote working
• Outdoor events
• Fishing and recreational activities
• Portable device power station charging
• Home backup power preparation
• Renewable energy generation

Included Accessories

• BLUETTI 100W Foldable Solar Panel
• Attached MC4 solar connection cable
• User Manual

System Benefits When Paired with a Compatible BLUETTI Power Station

• Provides renewable charging when grid electricity is unavailable

• Helps extend portable power station runtime during outdoor trips

• Reduces reliance on wall outlets, car charging, and fuel generators

• Supports silent and emission-free energy generation

• Provides portable charging for camping, caravanning, and road trips

• Supports emergency backup power preparation

• Folds into a compact form for easier transport and storage

• Uses standard MC4 connectivity for simple solar integration

• Supports compatible BLUETTI power stations across multiple capacity ranges

• Provides up to approximately 90W of real-world output under ideal conditions

Supports longer off-grid power use when positioned in strong, direct sunlight and paired with a compatible portable power station.

*Contact PVtoEV for compatibility guidance and complete BLUETTI portable power station and solar panel recommendations.
