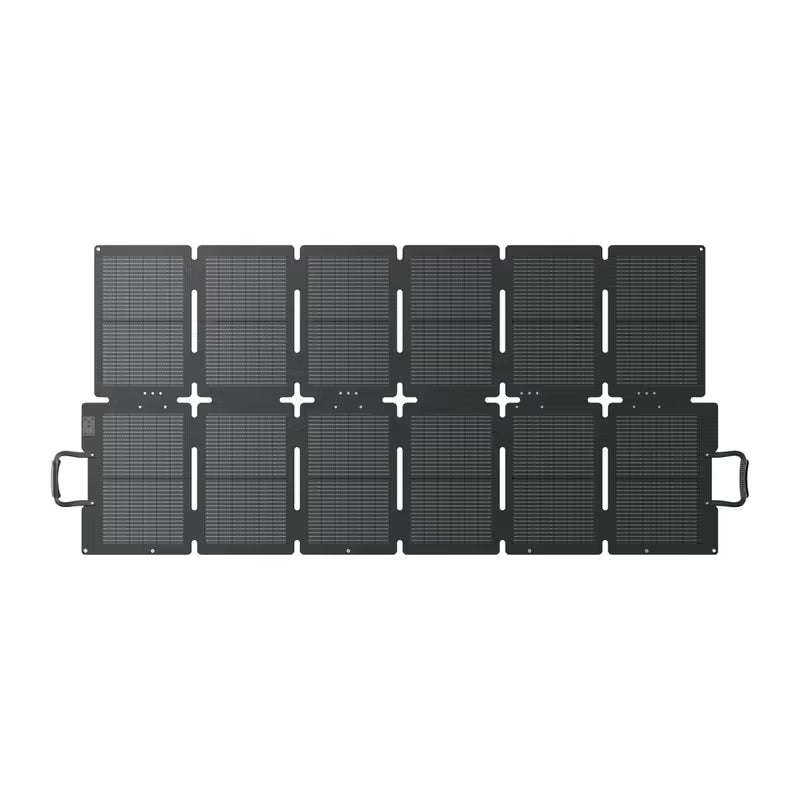

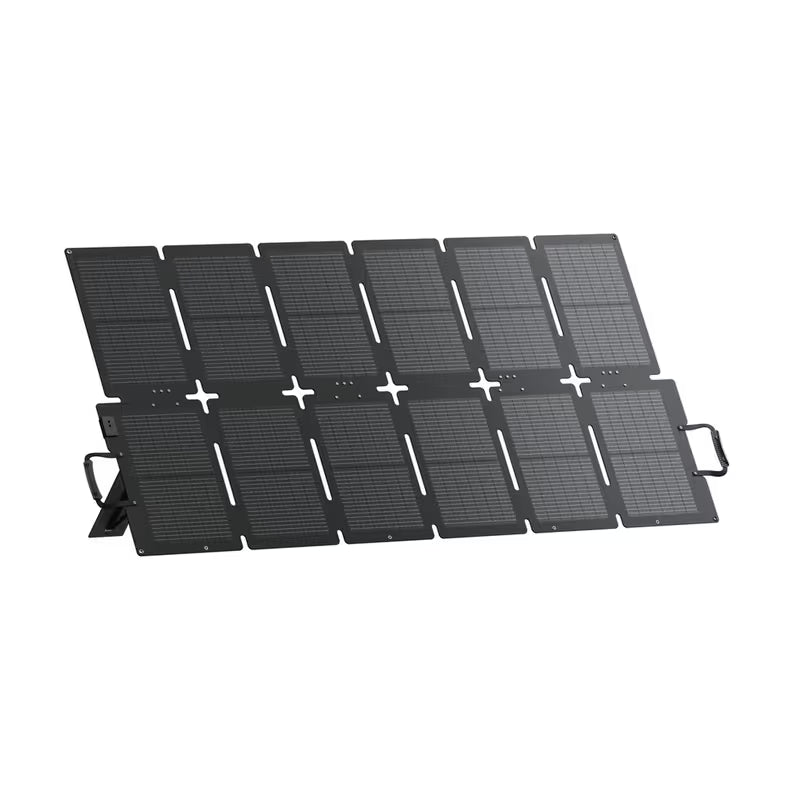

BLUETTI SORA 220 220W Foldable Solar Panel

The BLUETTI SORA 220 220W Foldable Solar Panel is a lightweight, high-efficiency portable solar charging solution designed for camping, caravanning, RV travel, boating, road trips, outdoor adventures, emergency preparedness and off-grid power generation. Featuring advanced N-Type monocrystalline solar cells, up to 25% conversion efficiency, durable ETFE coating, IP67 dust and water resistance, an adjustable 30°–45° kickstand and standard MC4 connectivity, it provides reliable renewable charging for compatible BLUETTI power stations and supported third-party solar generators.

Product Information

Brand: BLUETTI
Model: SORA 220
Product Type: Portable Foldable Solar Panel
Maximum Power: 220W
Solar Cell Type: N-Type Monocrystalline Silicon
Solar Conversion Efficiency: Up to 25%
Surface Lamination: ETFE / Ethylene Tetrafluoroethylene
Voltage at Maximum Power: 21.6V
Current at Maximum Power: 10.2A
Open-Circuit Voltage: 25.9V
Short-Circuit Current: 11A
Connector Type: Standard MC4 Connector
Adjustable Kickstand: 30°–45°
Water and Dust Resistance: IP67
Panel Sections: 12
Warranty: 12 Months
Compatibility Note: The connected power station must support the panel’s voltage, current, wattage and MC4 connector specifications.

Key Features & Benefits

220W Portable Solar Generation:
Generates up to 220W of renewable solar power for charging compatible BLUETTI portable power stations, supported third-party solar generators and off-grid energy systems.

Up to 25% Solar Conversion Efficiency:
Advanced N-Type monocrystalline solar cells capture more usable energy from the same amount of sunlight, supporting faster and more efficient portable power station charging.

Improved Low-Light and Hot-Weather Performance:
The next-generation solar cells are designed to maintain stable output across changing sunlight conditions and elevated outdoor temperatures.

37% Smaller and 58% Lighter:
Compared with previous BLUETTI 220W portable panels, the SORA 220 is designed to be 37% smaller and 58% lighter, making transportation, setup and storage more convenient.

Lightweight Portable Construction:
Weighing approximately 5.9 kg, the panel is suitable for camping, caravanning, RV travel, boating, outdoor events and emergency backup applications.

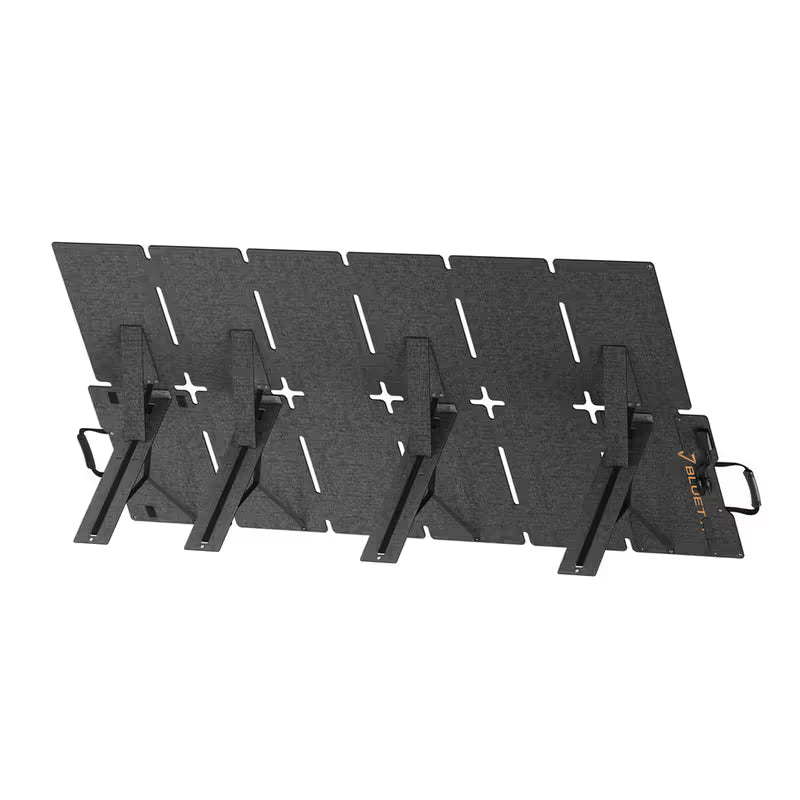

Adjustable 30°–45° Kickstand:
The integrated kickstand allows the panel angle to be adjusted between approximately 30° and 45° to improve alignment with direct sunlight throughout the day.

Improved Solar Collection:
Correctly adjusting the panel angle may capture approximately 25%–30% more solar energy than placing the panel completely flat under comparable conditions.

Durable ETFE Surface:
The ETFE-coated surface resists dirt, oils and moisture while providing improved light transmission and easier maintenance during regular outdoor use.

IP67 Dust and Water Resistance:
Provides protection against dust and temporary water exposure during outdoor use. The panel should not be submerged or left exposed to rain or standing water for extended periods.

Standard MC4 Connectivity:
Uses widely supported MC4 connectors for convenient connection to compatible BLUETTI power stations and supported third-party solar generators.

Foldable and Travel-Friendly Design:
The panel folds into a compact form for easier storage inside caravans, RVs, boats, vehicles, camping setups and home emergency kits.

Silent and Fuel-Free Operation:
Generates electricity directly from sunlight without fuel, fumes, engine noise or ongoing generator operating costs.

Mechanical Specifications

Product Type: Portable Foldable Solar Panel
Dimensions When Unfolded: 1,723 × 838 × 3 mm / 67.83 × 32.99 × 0.11 in

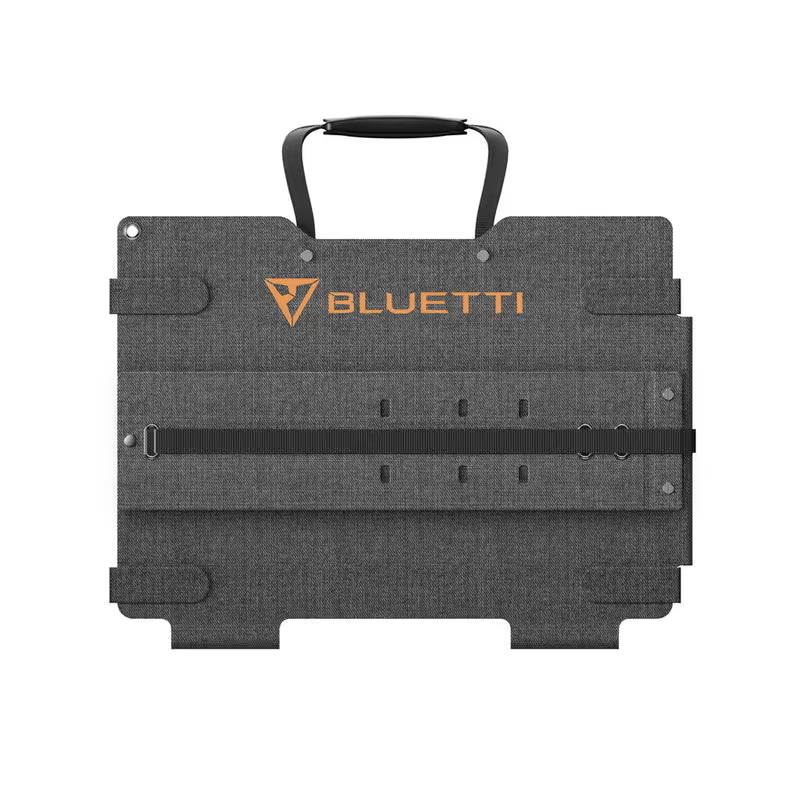

Dimensions When Folded: 415 × 302 × 87 mm / 16.34 × 11.89 × 3.43 in
Net Weight: 5.9 kg / 13.0 lb
Panel Sections: 12
Surface Material: ETFE-coated construction
Solar Cell Construction: N-Type monocrystalline silicon
Kickstand: Integrated adjustable support
Kickstand Adjustment Range: 30°–45°
Installation Type: Portable outdoor placement
Portability: Foldable construction with compact storage form
Water and Dust Resistance: IP67
Operating Temperature: -25°C to 65°C / -13°F to 149°F
Best Working Temperature: 25°C / 77°F

Warranty Information

Warranty: 12 Months
Customer Support: Lifetime Customer Support
Water Resistance: IP67-rated protection against dust and temporary water exposure
Water Exposure Notice: The SORA 220 is water-resistant but should not be submerged or left exposed to rain or water for prolonged periods.
Compatibility Requirement: Confirm that the connected power station supports the panel’s 25.9V open-circuit voltage, 11A short-circuit current and 220W rated output.
Panel Combination Notice: Combining solar panels with different electrical ratings, models or brands is not recommended. For improved performance, use matching panels with compatible voltage and current specifications.
Roof Installation Notice: The SORA 220 is designed as a portable solar panel and should not be permanently mounted directly onto a residential roof.

Electrical Performance

Solar Panel Specifications

Maximum Power: 220W
Solar Cell Type: N-Type Monocrystalline Silicon
Solar Conversion Efficiency: Up to 25%
Voltage at Maximum Power – Vmp: 21.6V
Current at Maximum Power – Imp: 10.2A
Open-Circuit Voltage – Voc: 25.9V
Short-Circuit Current – Isc: 11A
Surface Lamination: ETFE / Ethylene Tetrafluoroethylene
Output Connector: Standard MC4 Connector
Water and Dust Resistance: IP67

Output Specifications

Rated Solar Output: Up to 220W
Maximum Power Voltage: 21.6V
Maximum Power Current: 10.2A
Connection Type: Standard MC4 solar connection
Included Power Station Cable: MC4-to-XT60 cable
Cable Length: 1.5 metres
Direct USB Output: Not Supported
Power Generation Type: Direct-current solar output for compatible portable power stations and solar generators

Solar Charging Performance

• Actual solar output and charging performance may vary depending on:
• Sunlight intensity
• Weather and cloud conditions
• Panel angle and orientation
• Ambient temperature
• Shade from trees, buildings or nearby equipment
• Dust, dirt, oils or debris on the panel surface
• Cable condition and connection quality
• Connected power station solar input limitations

For improved performance, unfold the panel completely, keep the solar surface clean, avoid shaded locations and adjust the integrated kickstand between 30° and 45° to face strong, direct sunlight.

Compatibility

Compatible Product Type: Portable power stations, energy storage systems and solar generators with supported solar input specifications
Connector Type: Standard MC4 Connector
Included Adapter Cable: 1.5-Metre MC4-to-XT60 Cable
BLUETTI Compatibility: Compatible BLUETTI power stations with suitable solar input voltage, current and wattage limits
Third-Party Compatibility: Supported third-party power stations with compatible MC4 or XT60 solar input connections
Voltage Requirement: The connected power station’s permitted solar input voltage must support the panel’s 25.9V open-circuit voltage.
Current Requirement: The connected system should support up to 11A of solar input current.
Power Requirement: The connected device should accept up to 220W of solar input power.
Direct USB Charging: Not Supported
Designed For: Camping, caravanning, RV travel, boating, off-grid charging, emergency backup and outdoor energy setups
Installation Limitation: Not designed for permanent residential rooftop installation.

Compatibility depends on the connected power station’s solar input limits and the cable or adapter configuration used. Always check the power station specifications before connecting the panel.

Smart Energy Features

• Supports portable renewable solar charging
• Provides up to 220W of rated solar output
• Provides up to 25% solar conversion efficiency
• Uses advanced N-Type monocrystalline solar cells
• Supports stable output in changing light and hot-weather conditions
• Features durable and easy-to-clean ETFE surface coating
• Provides IP67 dust and water resistance
• Supports adjustable 30°–45° solar positioning
• May collect 25%–30% more solar energy than flat placement when correctly angled
• Uses standard MC4 solar connectors
• Includes an MC4-to-XT60 connection cable
• Folds into a compact form for transportation and storage
• Generates electricity without fuel, fumes or engine noise
• Supports compatible BLUETTI portable power stations
• Supports compatible third-party solar generators
• Designed for outdoor travel, emergencies and remote energy applications

Applications

• Camping and outdoor adventures
• Caravanning and RV travel
• Boating and marine recreation
• Road trips
• Fishing trips
• Off-grid charging
• Portable power station charging
• Emergency preparedness
• Solar generator setups
• Remote working
• Outdoor events
• Photography and videography trips
• Home backup power preparation
• Power outage support
• Renewable energy generation
• Extended outdoor stays

Included Accessories

• BLUETTI SORA 220 220W Foldable Solar Panel
• 1.5-Metre MC4-to-XT60 Cable
• User Manual

System Benefits When Paired with Compatible BLUETTI Portable Power Stations

• Provides up to 220W of renewable solar charging power
• Helps recharge compatible power stations when grid electricity is unavailable
• Supports efficient energy collection through N-Type monocrystalline solar cells
• Helps extend portable power station runtime during camping and outdoor use
• Reduces reliance on wall outlets, vehicle charging and fuel generators
• Improves emergency backup flexibility during outages and remote travel
• Provides silent and emission-free electricity generation
• Uses standard MC4 connectivity for convenient solar integration
• Includes an XT60 connection cable for compatible portable power stations
• Folds into a compact size for easier transportation and storage
• Provides an adjustable kickstand for improved solar positioning
• Supports outdoor operation across a wide temperature range
• Provides IP67 protection for demanding outdoor conditions
• Helps maintain portable energy for caravanning, boating, camping and road trips
• Supports longer off-grid power use when positioned in strong direct sunlight and paired with a compatible portable power station.

Contact PVtoEV for compatibility guidance and complete BLUETTI portable power station and solar panel recommendations.
