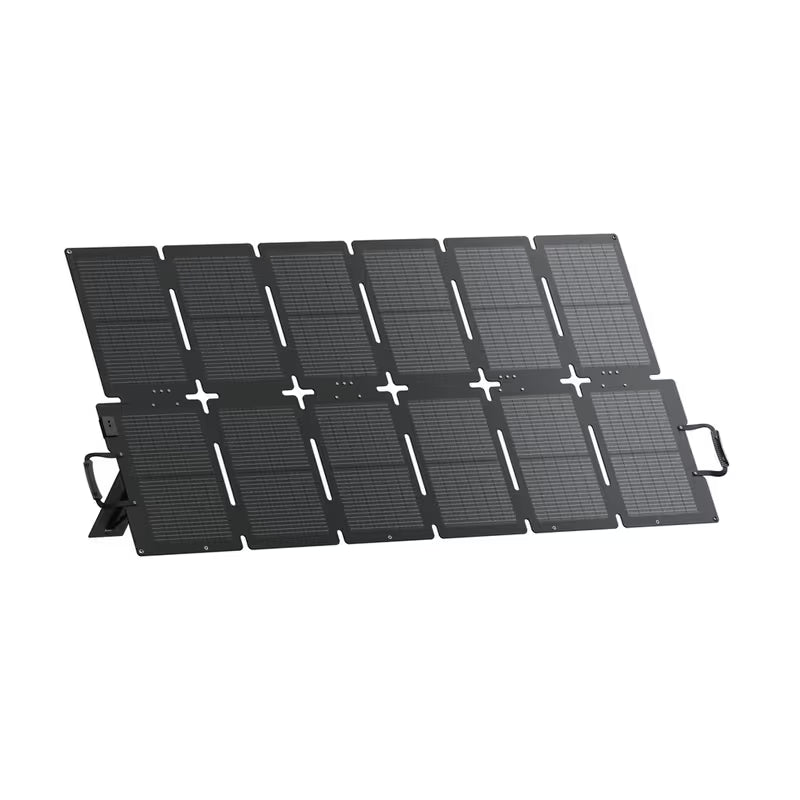

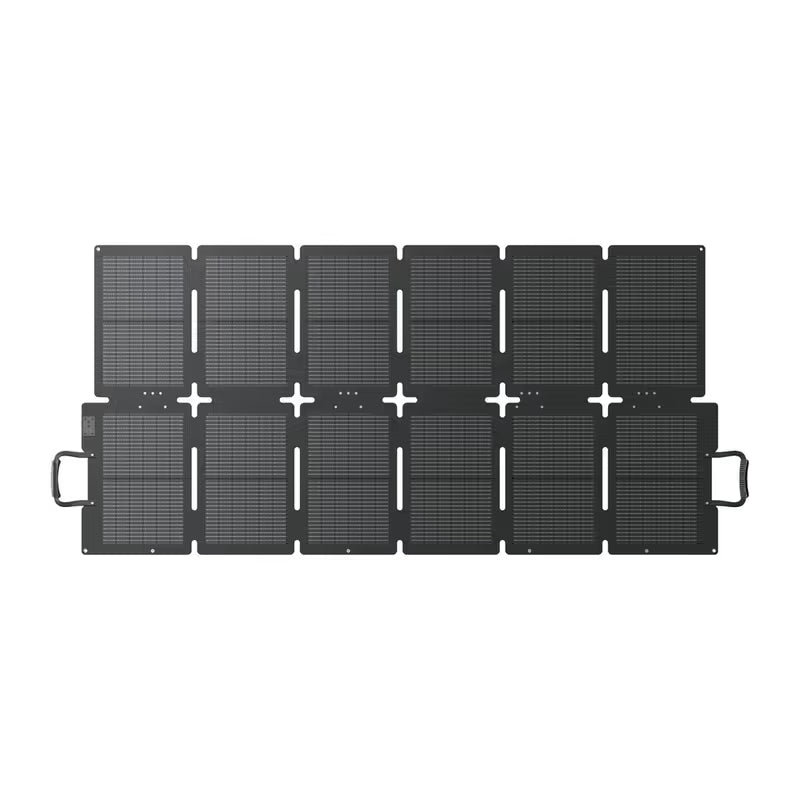

BLUETTI SORA 500 500W Foldable Solar Panel

The BLUETTI SORA 500 500W Foldable Solar Panel is a high-output portable solar charging solution designed for camping, caravanning, RV travel, boating, road trips, outdoor work, emergency preparedness and extended off-grid power generation. Featuring advanced N-Type monocrystalline TOPCon solar cells, up to 25% conversion efficiency, durable ETFE construction, IP67 outdoor protection, a compact 12-section folding design and universal MC4 connectivity, it provides efficient renewable charging for compatible BLUETTI power stations and supported third-party solar generators.

Product Information

• Brand: BLUETTI

• Model: SORA 500

• Product Type: High-Output Portable Foldable Solar Panel

• Maximum Power: 500W

• Solar Cell Type: N-Type Monocrystalline TOPCon

• Solar Conversion Efficiency: Up to 25%

• Surface Material: ETFE-Coated Construction

• Voltage at Maximum Power: 40.92V

• Current at Maximum Power: 12.22A

• Open-Circuit Voltage: 49.1V

• Short-Circuit Current: 13.31A

• Connector Type: Standard MC4 Connector

• Number of Panel Sections: 12

• Water and Dust Resistance: IP67

• Operating Temperature: -25°C to 65°C

• Warranty: 12 Months

• Compatibility Note: The connected power station must support the panel’s voltage, current, wattage and MC4 connector specifications.

Key Features & Benefits

• Powerful 500W Solar Generation: Generates up to 500W of renewable solar power for faster charging of compatible portable power stations, solar generators and larger off-grid energy systems.


• Up to 25% Solar Conversion Efficiency: Advanced N-Type monocrystalline TOPCon solar cells convert more available sunlight into usable electrical energy, reducing the time required to recharge compatible power stations.


• Improved Low-Light Performance: N-Type TOPCon solar cell technology is designed to maintain stronger power generation under changing sunlight, cloudy conditions and partial shading compared with conventional PERC solar panels.


• Stable Hot-Weather Performance: The advanced solar cells provide improved performance under elevated outdoor temperatures, helping maintain more dependable energy production during summer travel and off-grid use.

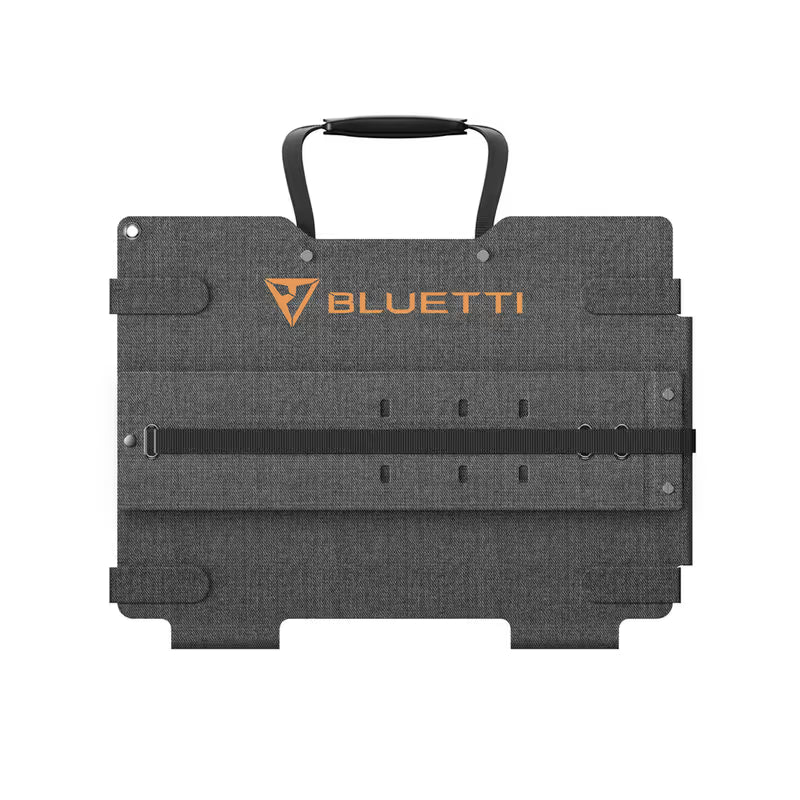

• Compact 12-Section Folding Design: The solar panel folds across 12 individual sections into a compact storage form, making a high-output 500W panel easier to transport inside a caravan, RV, boat, vehicle or storage compartment.


• 40% Smaller Folded Design: The SORA 500 is designed to be approximately 40% smaller than traditional comparable portable solar panels, reducing the storage space required during travel.


• 28% Lighter Construction: At approximately 12.9 kg, the SORA 500 is designed to be around 28% lighter than traditional comparable panels while still providing up to 500W of rated output.

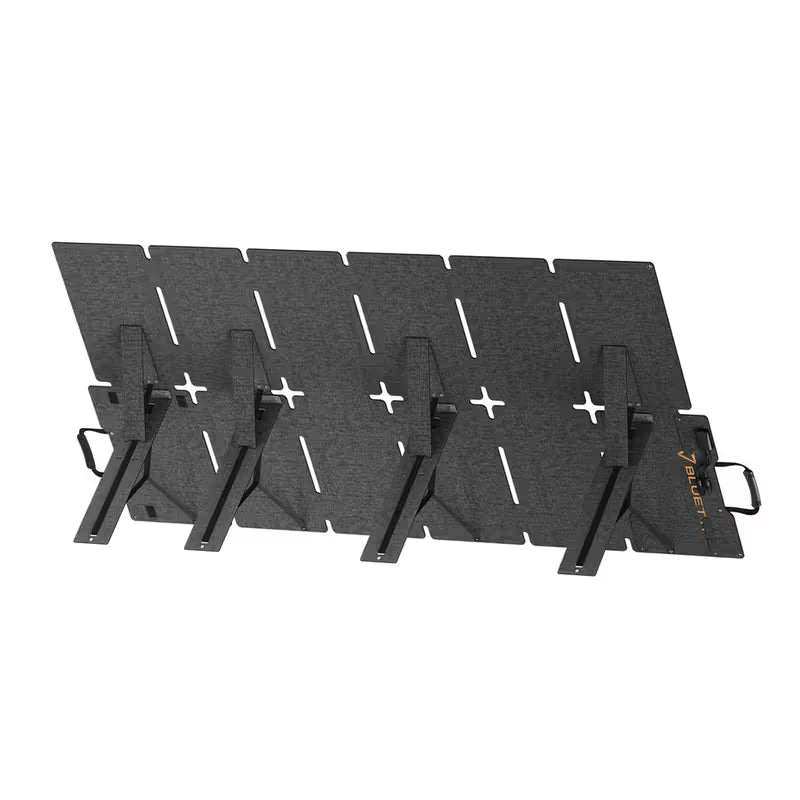

• Integrated Adjustable Stand: Built-in support stands allow the panel to be positioned toward direct sunlight for improved solar collection throughout the day.


• Durable ETFE-Coated Surface: The ETFE surface helps resist dirt, moisture and everyday outdoor wear while allowing the panel to be cleaned quickly for improved sunlight absorption.


• IP67 Outdoor Protection: The IP67-rated construction provides protection against dust, splashes and temporary water exposure, supporting dependable use during camping, caravanning and other outdoor activities.


• Universal MC4 Connectivity: Uses standard MC4 connectors for convenient connection to compatible BLUETTI power stations and supported third-party solar generators.


• Reliable Off-Grid Charging: Provides renewable energy where conventional grid electricity is unavailable, helping maintain portable power during extended trips, remote work and emergency situations.


• Silent and Fuel-Free Operation: Generates electricity directly from sunlight without fuel, exhaust fumes, engine noise or ongoing generator operating costs.

Mechanical Specifications

• Product Type: High-Output Portable Foldable Solar Panel

• Dimensions When Unfolded: 2,541 × 1,146.6 × 3 mm / 100 × 45.1 × 0.1 in

• Dimensions When Folded: 570 × 445 × 85 mm / 22.4 × 17.5 × 3.3 in

• Net Weight: 12.9 kg / 28.4 lb

• Number of Panel Sections: 12

• Surface Material: ETFE-Coated Construction

• Solar Cell Construction: N-Type Monocrystalline TOPCon Cells

• Installation Type: Portable outdoor placement

• Support System: Integrated adjustable stands

• Portability: Multi-section foldable construction with compact storage form

• Water and Dust Resistance: IP67

• Operating Temperature: -25°C to 65°C / -13°F to 149°F

• Best Working Temperature: 25°C / 77°F

Electrical Performance

Solar Panel Specifications

• Maximum Power: 500W

• Solar Cell Type: N-Type Monocrystalline TOPCon

• Solar Conversion Efficiency: Up to 25%

• Voltage at Maximum Power – Vmp: 40.92V

• Current at Maximum Power – Imp: 12.22A

• Open-Circuit Voltage – Voc: 49.1V

• Short-Circuit Current – Isc: 13.31A

• Surface Material: ETFE-Coated Construction

• Output Connector: Standard MC4 Connector

• Water and Dust Resistance: IP67

Output Specifications

• Rated Solar Output: Up to 500W

• Maximum Power Voltage: 40.92V

• Maximum Power Current: 12.22A

• Connection Type: Standard MC4 Solar Connection

• Included Power Station Cable: MC4-to-XT60 Solar Charging Cable

• Solar Charging Cable Length: Approximately 1.5 Metres

• Direct USB Output: Not Supported

• Power Generation Type: Direct-current solar output for compatible portable power stations and solar generators

Solar Charging Performance

• Actual solar output and charging performance may vary depending on:
• Sunlight intensity
• Weather and cloud conditions
• Panel angle and orientation
• Ambient temperature
• Partial shading from trees, buildings or nearby equipment
• Dust, dirt or debris on the solar surface
• Cable condition and connection quality
• Connected power station input limitations
• Battery state of charge and charging temperature

For improved solar charging performance, unfold all 12 panel sections completely, keep the solar surface clean, avoid shaded locations and adjust the integrated stands so the panel faces strong, direct sunlight.

Warranty Information

• Warranty: 12 Months

• Customer Support: BLUETTI Australia Customer Support

• Water and Dust Resistance: IP67-rated outdoor protection

• Compatibility Requirement: Confirm that the connected power station supports the panel’s 49.1V open-circuit voltage, 13.31A short-circuit current and 500W maximum output.

• Water Exposure Notice: Although designed for outdoor use, the panel connectors should not be submerged or left exposed to standing water for extended periods.

• Wind Safety Notice: Secure the solar panel properly during windy conditions to prevent movement, impact or accidental damage.

• Care Requirement: Avoid excessive bending, sharp objects, strong impacts and heavy loads that may damage the solar cells or reduce power generation.

• Panel Combination Notice: Connected solar panels should have compatible voltage and current specifications. Using matching panel models is recommended for multi-panel configurations.

• Roof Installation Notice: The SORA 500 is a portable solar panel and is not designed for permanent installation directly onto a residential roof.

Compatibility

• Compatible Product Type: Portable power stations, energy storage systems and solar generators with supported solar input specifications

• Connector Type: Standard MC4 Connector

• Included Adapter Cable: Approximately 1.5-Metre MC4-to-XT60 Solar Charging Cable

• BLUETTI Compatibility: Compatible BLUETTI power stations with suitable solar input voltage, current and wattage limits

• Third-Party Compatibility: Supported third-party power stations using compatible MC4 or XT60 solar input connections

• Voltage Requirement: The connected power station must support the panel’s 49.1V open-circuit voltage.

• Current Requirement: The connected power station should support up to 13.31A of solar input current.

• Power Requirement: The connected device should accept up to 500W of solar input power.

• Direct USB Charging: Not Supported

• Designed For: Camping, caravanning, RV travel, boating, off-grid charging, emergency backup, outdoor work and larger portable energy systems

• Installation Limitation: Designed for temporary portable use and not permanent residential rooftop installation.

Compatibility depends on the connected power station’s solar input limits and the charging cable or adapter configuration. Always confirm the power station’s permitted voltage, current and wattage before connecting the SORA 500.

Smart Energy Features

• Supports high-output portable solar charging
• Provides up to 500W of rated solar output
• Provides up to 25% solar conversion efficiency
• Uses advanced N-Type monocrystalline TOPCon solar cells
• Supports improved low-light energy generation
• Supports stable performance under elevated temperatures
• Features durable and easy-to-clean ETFE construction
• Provides IP67 dust and water resistance
• Uses a compact 12-section folding design
• Features integrated adjustable support stands
• Designed to be approximately 40% smaller when folded
• Designed to be approximately 28% lighter than traditional comparable panels
• Supports standard MC4 solar connectivity
• Includes an MC4-to-XT60 solar charging cable
• Generates electricity without fuel, fumes or engine noise
• Supports compatible BLUETTI portable power stations
• Supports compatible third-party solar generators
• Designed for extended outdoor travel and off-grid energy use

Applications

• Camping and outdoor adventures
• Caravanning and RV travel
• Boating and marine recreation
• Road trips
• Extended off-grid stays
• Portable power station charging
• Emergency preparedness
• Solar generator systems
• Remote work locations
• Outdoor job sites
• Outdoor events
• Photography and videography equipment charging
• Home backup power preparation
• Power outage support
• Mobile business operations
• Food truck and market stall energy support
• Renewable energy generation

Included Accessories

• BLUETTI SORA 500 500W Foldable Solar Panel
• MC4 Connection Cable
• Approximately 1.5-Metre MC4-to-XT60 Solar Charging Cable
• User Manual

System Benefits When Paired with Compatible BLUETTI Portable Power Stations

• Provides up to 500W of renewable solar charging power
• Supports faster charging of larger-capacity portable power stations
• Helps extend power station runtime during camping and outdoor use
• Reduces reliance on wall outlets, vehicle charging and fuel generators
• Improves backup power flexibility during outages and emergencies
• Supports higher-demand portable and off-grid energy systems
• Provides efficient energy generation through N-Type TOPCon solar cells
• Supports improved performance in changing light and hot-weather conditions
• Provides silent and emission-free electricity generation
• Uses standard MC4 connectivity for convenient solar integration
• Includes an XT60 charging cable for compatible power stations
• Folds into a compact form for easier transportation and storage
• Provides integrated stands for improved solar positioning
• Supports operation across a wide outdoor temperature range
• Provides IP67 protection for demanding outdoor conditions
• Helps maintain portable energy for caravanning, boating, remote work and extended road trips
• Supports longer off-grid power use when fully unfolded, positioned in strong direct sunlight and paired with a compatible portable power station.

Contact PVtoEV for compatibility guidance and complete BLUETTI portable power station and solar panel recommendations.
