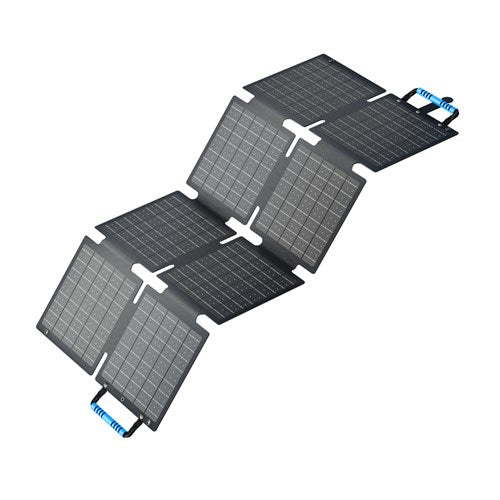

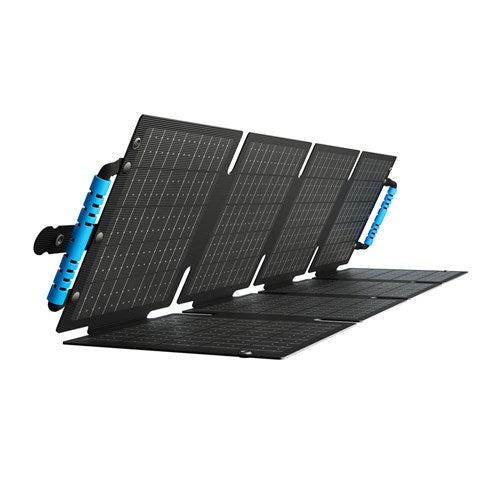

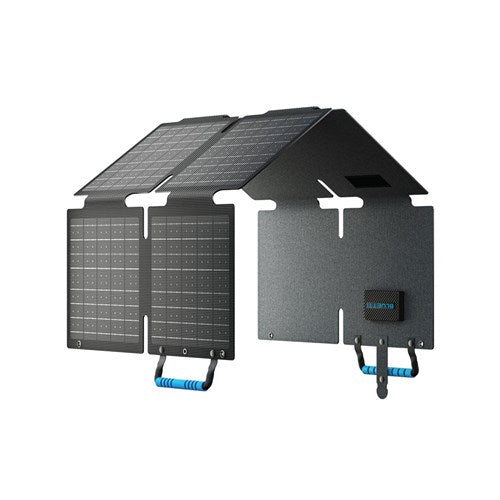

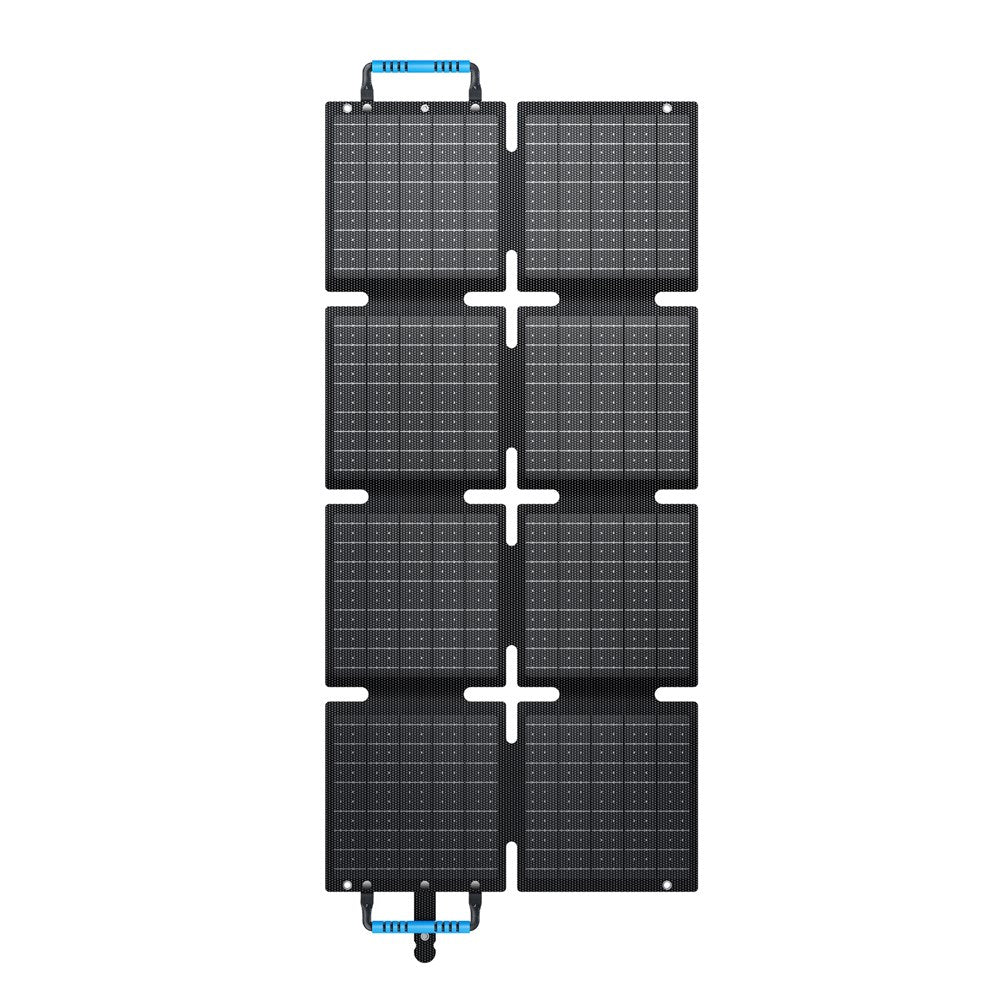

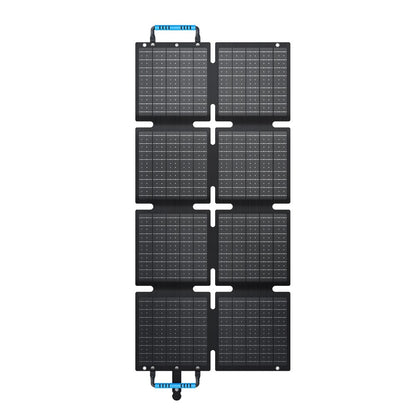

BLUETTI SORA 60 60W Mini Foldable Solar Panel

The BLUETTI SORA 60 60W Mini Foldable Solar Panel is an ultra-portable solar charging solution designed for hiking, camping, photography, road trips, outdoor activities, emergency preparedness, and portable power station charging. Featuring an eight-fold compact design, high-efficiency monocrystalline solar cells, durable ETFE lamination, IP65 splash resistance, and built-in DC5521, USB-A, and USB-C outputs, it can charge compatible BLUETTI power stations and supported portable devices directly from sunlight.

Product Information

Brand: BLUETTI
Model: PV60F / SORA60
Product Type: Mini Foldable Portable Solar Panel
Maximum Power: 60W
Solar Cell Type: Monocrystalline Silicon
Solar Conversion Efficiency: Up to 24.7%
Surface Lamination: ETFE / Ethylene Tetrafluoroethylene
Folding Design: Eight-fold construction
Water Resistance: IP65 splash-resistant
DC Output: DC5521, up to 60W
USB-A Output: Up to 18W
USB-C Output: Up to 30W PD
Power Station Connection: DC5521-to-XT60 cable
Warranty: 12 Months
Compatibility Note: Confirm that the connected power station supports the panel’s voltage, current, wattage, and connector specifications before use.

Key Features & Benefits

60W Portable Solar Generation:
Generates up to 60W of renewable solar power for charging compatible BLUETTI portable power stations, small solar generators, and supported electronic devices.

Up to 24.7% Solar Conversion Efficiency:
Uses high-efficiency monocrystalline silicon solar cells to capture more usable energy from available sunlight, including during less-than-ideal outdoor conditions.

Eight-Fold Compact Design:
Folds into a highly compact package measuring approximately 226 × 210 × 70 mm, making it easier to pack inside a backpack, vehicle, camera bag, or camping setup.

Lightweight and Travel-Friendly:
Weighing approximately 1.4 kg, the panel is easy to carry during hiking, camping, photography trips, road travel, and other outdoor activities.

Direct Device Charging:
Built-in DC5521, USB-A, and USB-C outputs allow supported phones, tablets, cameras, power banks, and other small devices to be charged directly without requiring a portable power station.

Power Up to Three Devices:
The multiple output connections provide flexible charging for compatible devices and power equipment while sunlight is available.

USB-C Power Delivery:
The USB-C output supports up to 30W PD charging for compatible smartphones, tablets, cameras, power banks, and other USB-C devices.

USB-A Fast Charging:
The USB-A connection provides up to 18W output for compatible phones, lights, cameras, and portable electronics.

DC5521 Solar Output:
Provides up to 60W through the DC5521 output for connecting compatible BLUETTI portable power stations using the included DC5521-to-XT60 cable.

Durable ETFE Construction:
The ETFE laminated surface provides improved light transmission, scratch resistance, and durability for regular outdoor use.

IP65 Splash Resistance:
Provides protection against dust and water splashes during temporary outdoor use. The panel should not be submerged or left exposed to rain for extended periods.

Hanging Strap and Hook Support:
The compact panel can be positioned or suspended using its integrated carrying and hanging system, providing additional setup flexibility during outdoor travel.

Silent and Fuel-Free Operation:
Generates electricity directly from sunlight without fuel, fumes, engine noise, or ongoing generator operating costs.

Mechanical Specifications

Product Type: Mini Foldable Portable Solar Panel
Folding Sections: Eight
Dimensions When Folded: 8.9 × 8.3 × 2.8 in / 226 × 210 × 70 mm
Dimensions When Unfolded: 35.4 × 16.7 in / 900 × 424 mm
Net Weight: 3.09 lb / 1.4 kg
Surface Material: ETFE laminated coating
Installation Type: Portable outdoor placement or hanging installation
Portability: Lightweight eight-fold construction
Carrying Design: Integrated carrying and hanging support
Water Resistance: IP65 splash-resistant
Operating Temperature: 14°F to 149°F / -10°C to 65°C
Best Working Temperature: 77°F / 25°C

Warranty Information

Warranty: 12 Months
Support: BLUETTI Customer Support
Water Exposure Notice: The panel is IP65 splash-resistant but should not be submerged or left exposed to rain or standing water for extended periods.
Operating Notice: Do not use the solar panel during thunderstorms, floods, typhoons, or other extreme weather conditions.
Care Requirement: Avoid excessive bending, dropping, scratching, prolonged shading, and placing heavy objects on the panel.
Compatibility Requirement: Confirm that the connected power station’s solar input remains within the panel’s voltage, current, and power specifications.

Electrical Performance

Solar Panel Specifications

Maximum Power: 60W
Solar Cell Type: Monocrystalline Silicon
Cell Lamination: ETFE / Ethylene Tetrafluoroethylene
Solar Conversion Efficiency: Up to 24.7%
Voltage at Maximum Power – Vmp: 23.1V
Current at Maximum Power – Imp: 2.58A
Open-Circuit Voltage – Voc: 27.5V
Short-Circuit Current – Isc: 2.76A

Output Specifications

DC5521 Output: 23.1V, up to 60W
USB-A Output: 5V/3A, 9V/2A, or 12V/1.5A; up to 18W
USB-C Output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, or 20V/1.5A; up to 30W PD
Available Outputs: DC5521, USB-A, and USB-C
Simultaneous Charging: Supports charging up to three compatible devices or power products from the available outputs.

Solar Charging Performance

• Actual solar output and charging performance may vary depending on:
• Sunlight intensity
• Weather conditions
• Panel orientation and angle
• Ambient temperature
• Shade from trees, buildings, or equipment
• Dust, dirt, or debris on the panel surface
• Connected device charging limitations
• Power station solar input limits

For improved performance, unfold the panel completely, keep its surface clean, and position it directly toward strong sunlight without shade.

Compatibility

Compatible Product Type: BLUETTI portable power stations and supported electronic devices
Power Station Connector: DC5521-to-XT60 connection
Direct Device Charging: USB-A and USB-C compatible devices
Third-Party Compatibility: Supported power stations with compatible voltage, current, power, and connector specifications
Connection Requirement: Ensure the connected power station’s input voltage limit is higher than the panel’s total connected open-circuit voltage.

Recommended compatible BLUETTI products include:

• BLUETTI Elite 10
• BLUETTI Elite 30 V2
• BLUETTI Premium 30 V2
• BLUETTI AC2A
• BLUETTI AC2P
• BLUETTI AC50B
• BLUETTI AC50P
• BLUETTI Handsfree 1
• BLUETTI Handsfree 2

Compatibility may depend on the connected product version, solar input specifications, and cable configuration.

Smart Energy Features

• Supports portable renewable solar charging
• Provides up to 60W of rated solar output
• Provides up to 24.7% solar conversion efficiency
• Supports direct USB-A device charging
• Supports USB-C Power Delivery charging
• Supports DC5521 power station charging
• Can charge supported devices without a separate battery system
• Supports charging up to three compatible devices
• Uses high-efficiency monocrystalline solar cells
• Features durable ETFE surface lamination
• Features an eight-fold compact design
• Includes IP65 splash-resistant protection
• Supports compatible BLUETTI portable power stations
• Supports selected third-party power stations
• Generates electricity without fuel, fumes, or operating noise
• Designed for lightweight outdoor and travel use

Applications

• Camping and outdoor adventures
• Hiking and backpacking
• Photography and videography trips
• Road trips
• Caravanning and RV travel
• Portable power station charging
• Smartphone and tablet charging
• Camera and power bank charging
• Emergency preparedness
• Remote working
• Fishing and recreational activities
• Outdoor events
• Beach trips
• Travel backup power
• Small off-grid energy setups

Included Accessories

• BLUETTI SORA60 / PV60F 60W Mini Foldable Solar Panel
• 1.2-Metre DC5521-to-XT60 Connection Cable
• Carabiners × 2
• User Manual
• Warranty Card

System Benefits When Paired with Compatible BLUETTI Portable Power Stations

• Provides up to 60W of renewable solar charging power
• Helps recharge compact BLUETTI power stations when grid electricity is unavailable
• Reduces reliance on wall outlets and vehicle charging during outdoor travel
• Supports lightweight solar charging for hiking and camping setups
• Helps extend portable power station runtime during remote activities
• Provides silent and emission-free electricity generation
• Includes a DC5521-to-XT60 cable for compatible BLUETTI connections
• Folds into a small package for convenient transportation and storage
• Allows supported USB devices to charge directly from the panel
• Provides USB-C PD charging for compatible portable electronics
• Supports emergency charging for communication and lighting devices
• Improves energy flexibility during road trips, photography sessions, and outdoor events
• Supports longer off-grid power use when unfolded completely, positioned in strong direct sunlight, and paired with compatible power equipment.

Contact PVtoEV for compatibility guidance and complete BLUETTI portable power station and solar panel recommendations.
